Prolights ÆtherBox Two

Prolights ÆtherBox Two

AetherBox Two

$2,092.50
$2,350.00 $2,092.50
Sale Sold out
Shipping calculated at checkout.

Key Features

  • IP65 double universes CRMX transceiver

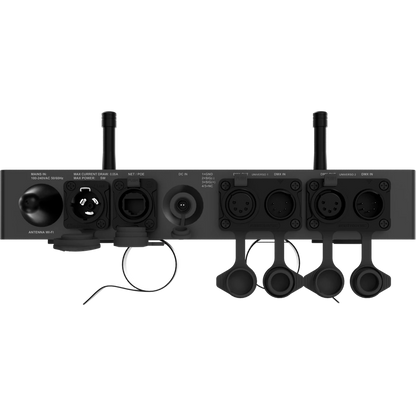

  • XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth
  • Rack mounting, truss mounting, camlocks, M10 and ⅜ threads anchoring options
  • Main power DC12V input, POE and NP-F battery type operation via an adapter box accessory
  • Available operating modes: TX mode, RX mode, and Repeater mode
  • Compatible with: CRMX, G4S, G3, and CRMX2 - CRMX2 operates as a receiver only

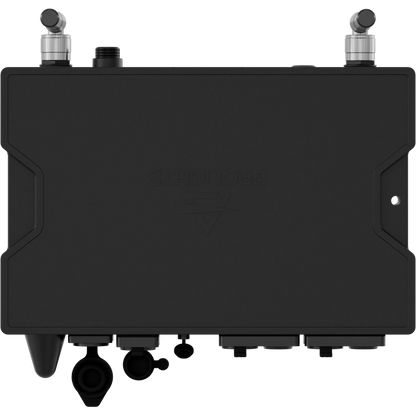

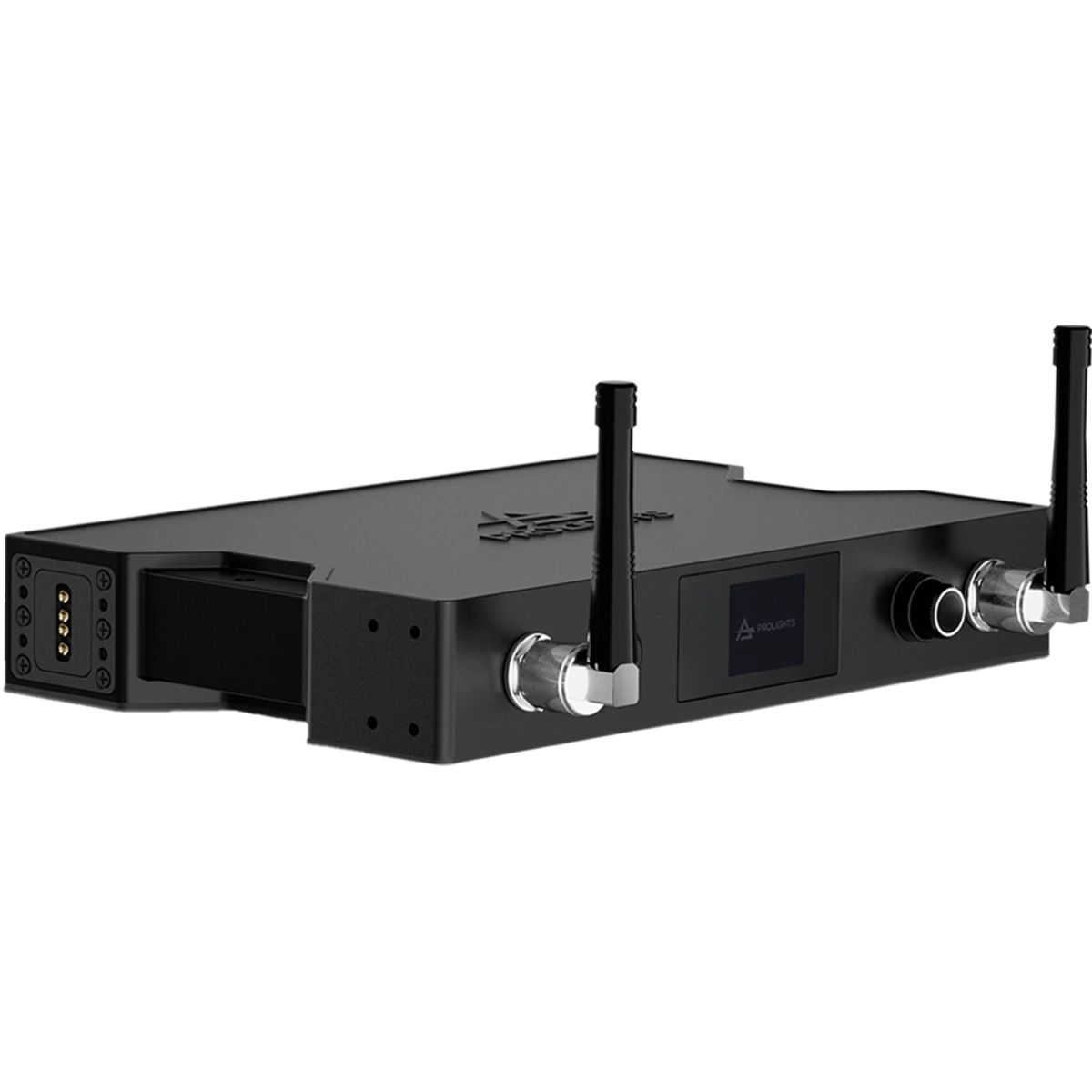

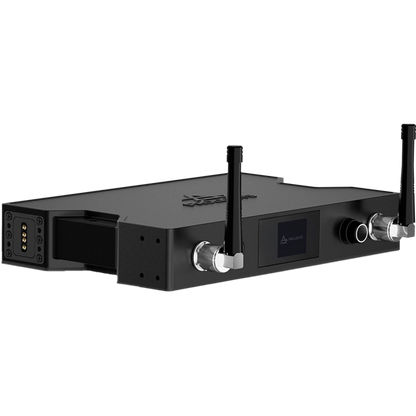

The AetherBox TWO is a robust IP65-rated double universes CRMX transceiver, designed for professional use in any setting, whether it be indoor or outdoor, on stages or sets. It boasts an extensive range of connectivity options including XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth, while supporting CRMX transmission protocol.

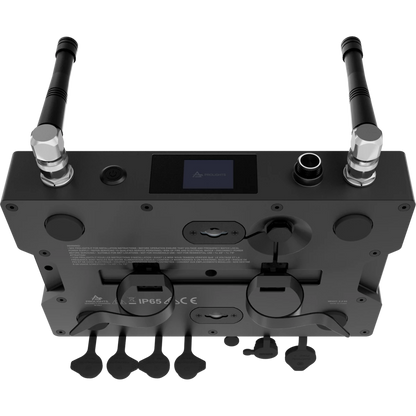

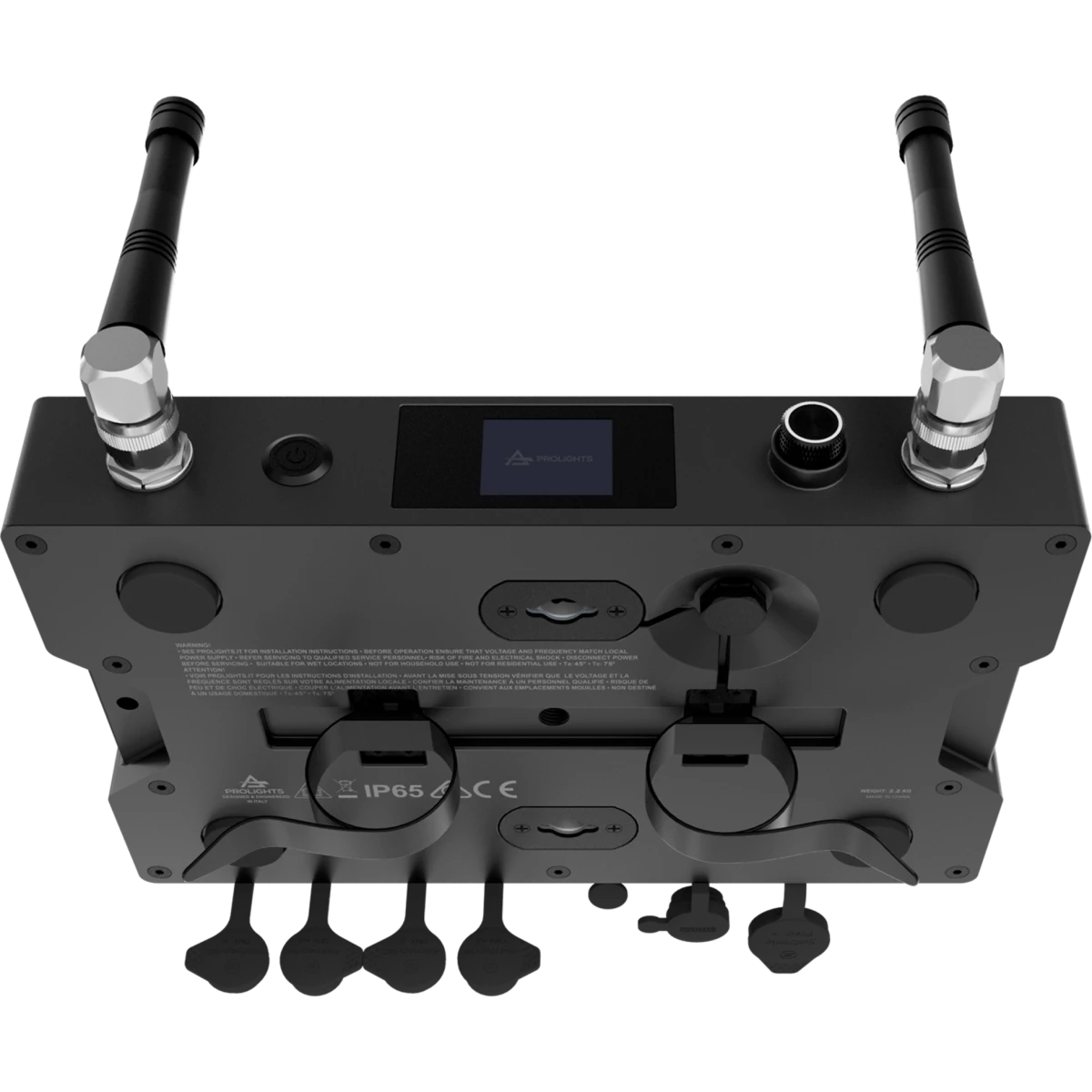

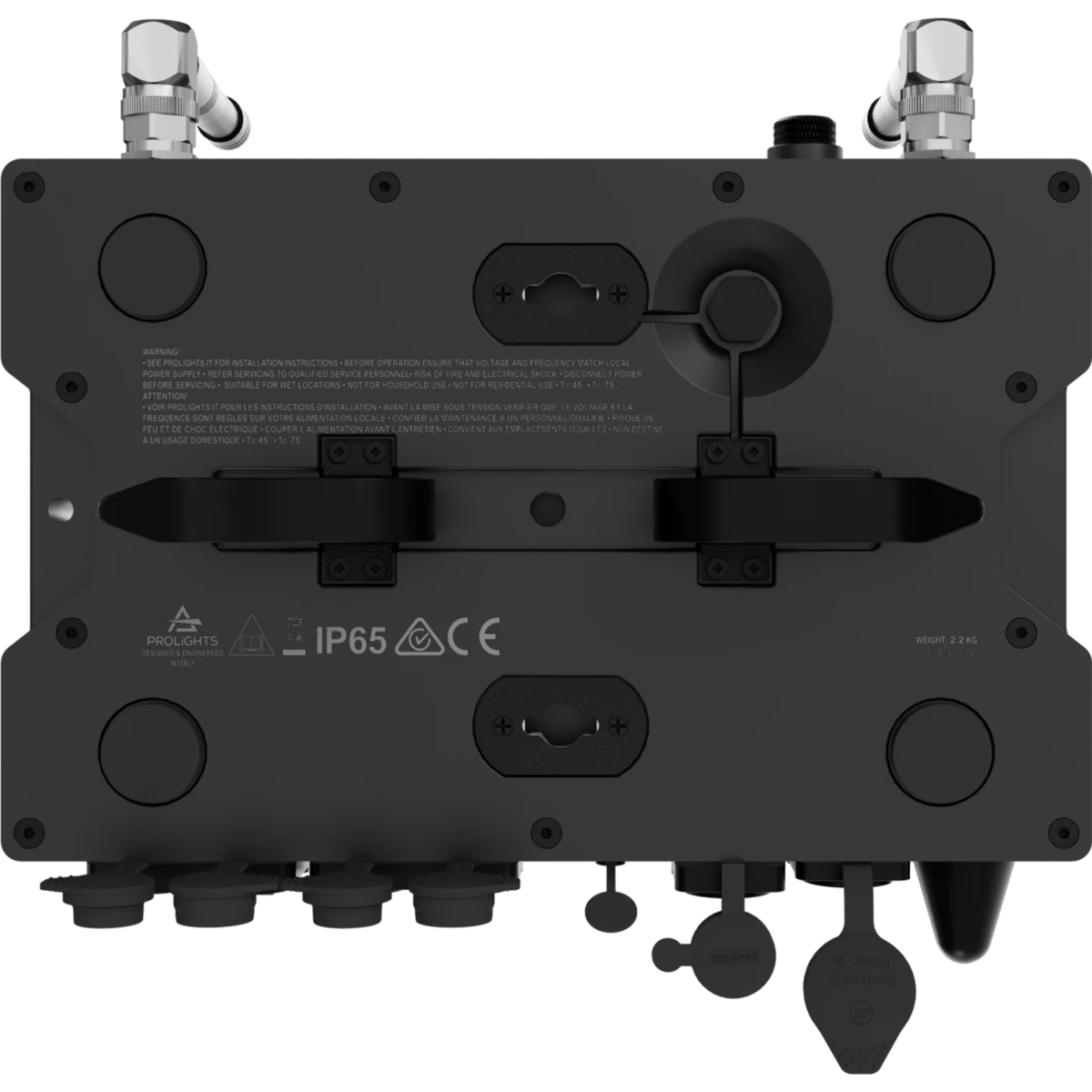

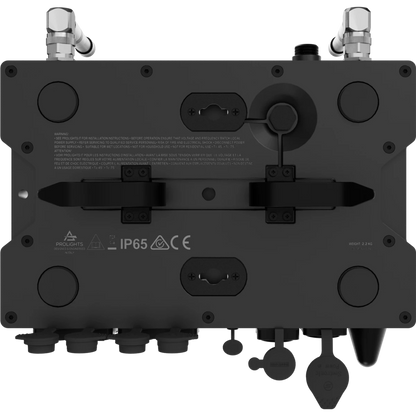

Constructed from die-cast aluminum, the chassis offers water and dust proof protection. It also provides versatile mounting solutions, such as rack mounting, truss mounting with velcro strings, camlock for easy hanging via omega brackets, and M10 and ⅜ threads for additional anchoring options.

The unit is adaptable in terms of power sources, accommodating mains power through a True1 connector, DC12V input, POE and NP-F battery type operation via an adapter box accessory. For user interaction, it features a color display and pushable encoders, allowing for easy access to advanced configuration settings.

Specifications

CONTROL
  • Supported Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • DMX channels: 1024ch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Other: 1 push encoder
ELECTRONICS
  • Firmware upgrade with: via DMX with UPBOXPRO/UPBOX1 (not included)
BATTERY
  • Battery: 2x7,2V NP-F550/F570/F750/F770 type battery via dedicated accessory

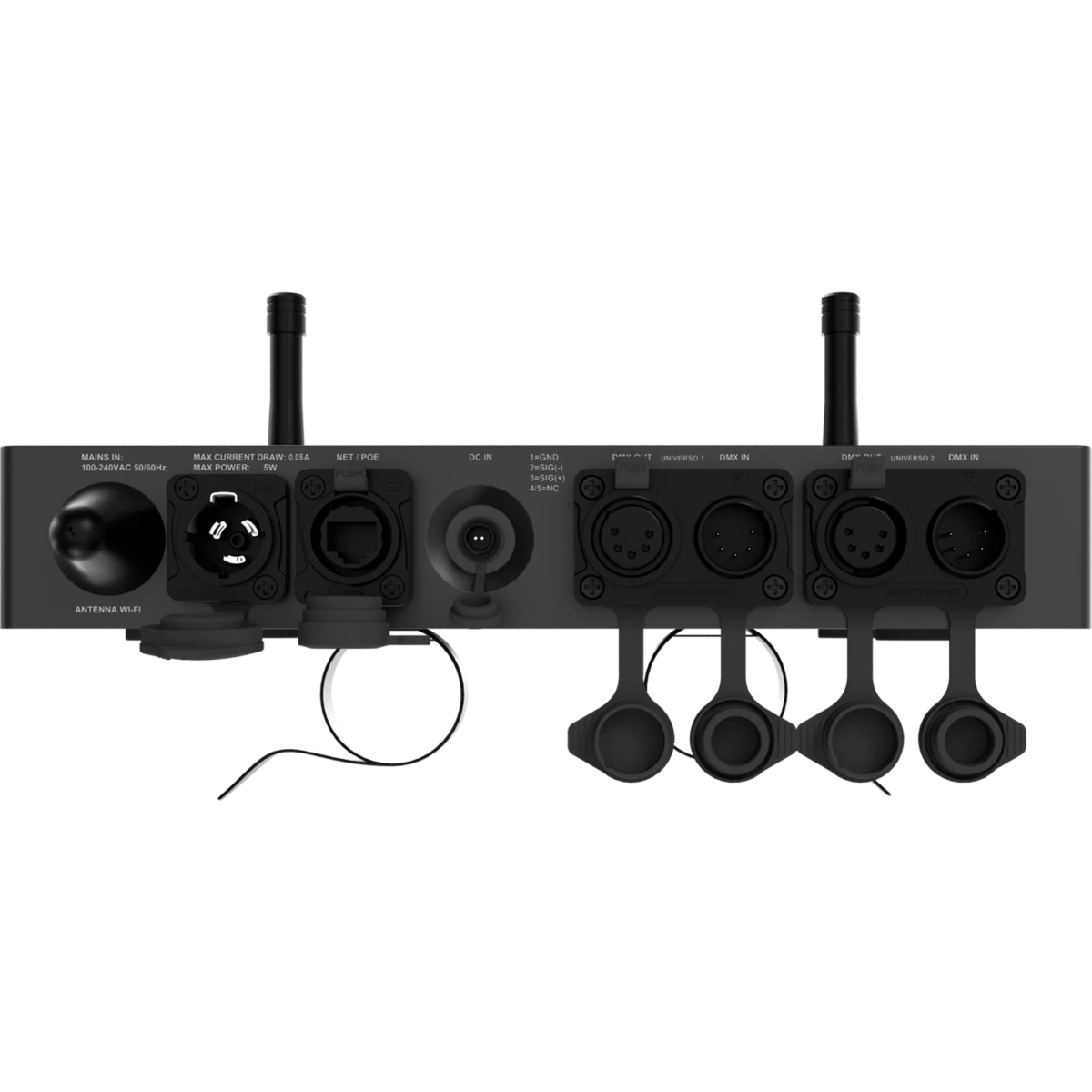

CONNECTIONS
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: 2x integrated LumenRadio TiMoTwo (full RDM) - CRMX, CRMX² (RX only) and W-DMX compatible
  • Transmission range: up to 80 meters with the included AEB2DBA90D antenna in open field
  • Data connection: Seetronic Ethernet IP IN connector
  • Low Voltage DC connector: Weipu SA6(12-48V), Battery slots
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 12V via DC IN, 2x7.2V via battery slots, POE
  • Max power consumption (230V): 5W
  • Standby power: 1,4 W
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Housing: Weatherproof IP65 construction
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 270x45x241mm / 10.63''x1.77''x9.49''
  • Weight: 2,2kg / 4.85lbs
INSTALLATION
  • Rack mount: 1U 19" standard rack (optional accessories)
  • Mounting points: M10 and 3/8" threaded mounting points for clamps and wall mounting
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
BOX CONTENT
  • 1 x AETHERBOXTWO
  • 2 x AEB2DBA90D
  • 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
