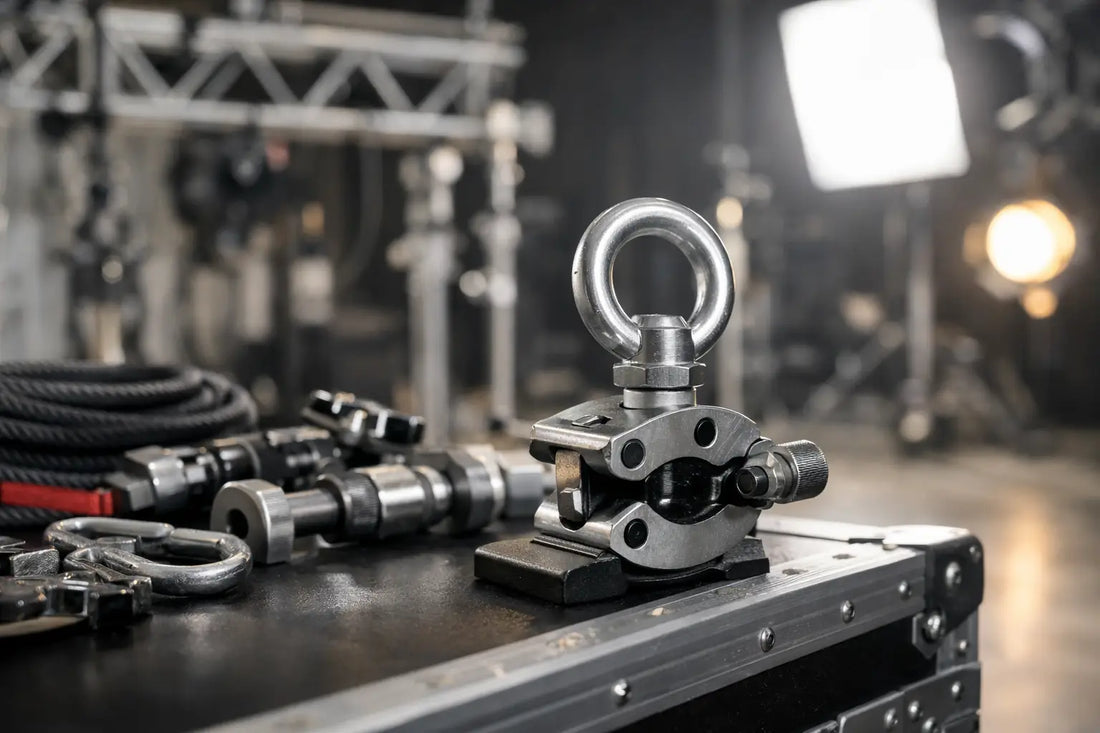

Studio Rigging Hardware Guide for Working Crews
Share
A dropped fixture is never a minor production delay. It is a stopped set, a difficult report, and a fast way to discover that the cheapest piece of metal in the package was carrying the biggest consequence. This studio rigging hardware guide is built for crews sourcing the clamps, couplers, safeties, slings, and attachment hardware that turn a lighting plan into a supportable overhead installation.
Rigging hardware is not one category. A cheeseborough coupler, a baby grid clamp, a beam clamp, and a wire-rope safety cable may all live in the same case, but they solve different problems and carry different limits. The right choice starts with the load path, not the product photo.
Studio Rigging Hardware Guide: Start With the Load Path
Before selecting a clamp or cable, map the route from the fixture to the building structure. Ask what is being supported, what it weighs in its fully configured state, where the load enters the structure, and what hardware connects each point. Include accessories that tend to get forgotten: barndoors, lenses, yokes, battery plates, power supplies, extension arms, and cable management.
A proper load path has no mystery link. If a fixture hangs from a pipe, the pipe needs an approved means of support. The primary attachment needs to be rated for that pipe and load orientation. The fixture needs a compatible hanging point. A secondary safety needs an independent attachment point whenever the application and local requirements call for one.
This sounds basic because it is basic. It is also where improvised overhead rigs get into trouble. A clamp may be rated, but that does not make the existing pipe, truss, ceiling grid, or structural member suitable. Hardware ratings only apply when the hardware is used within the manufacturer’s instructions and attached to a capable supporting structure.
Working Load Limit Is the Number That Matters
Look for a clearly stated working load limit, often shown as WLL or SWL. This is the maximum permitted working load under the conditions specified by the manufacturer. It is not the same thing as breaking strength, which is a test figure rather than a green light for production use.
Match the WLL to the actual load and the intended direction of force. A component may have a different rating in suspension, tension, side loading, or at an angle. A shackle that is fine for a straight vertical pick can lose capacity when loaded off-axis. A clamp designed to hang a fixture from round pipe is not automatically appropriate for pulling a side load or supporting a horizontal span.
When a setup involves multiple points, bridles, unusual angles, motors, or fixed building attachment, the calculation and approval process become more involved. Bring in a qualified rigger or engineer as required by the venue, jurisdiction, and production. A product catalog is useful. It is not a stamped rigging plan.
Choose Hardware by the Connection You Actually Have
The fastest way to buy the wrong rigging hardware is to shop by familiar name alone. Start with the material and dimensions you are connecting to, then narrow the product type.
Pipe Clamps and Cheeseborough Couplers
For round pipe and speed rail, pipe clamps and cheeseborough-style couplers are common workhorses. They are used to secure fixtures, grip hardware, truss accessories, or pipe sections, depending on the model and rating. Verify the pipe diameter before ordering. Nominal pipe sizes, outside diameters, and regional standards do not always line up as neatly as crews would like at 6:30 a.m.
Fixed, swivel, and right-angle couplers each have a place. A fixed coupler holds a repeatable relationship between two tubes. A swivel coupler helps when angles are not square. A right-angle coupler is useful for perpendicular connections, but it should not be treated as a universal answer for every structural configuration.
For lighting fixtures, inspect the clamp’s attachment point as closely as the pipe side. Confirm the bolt size, receiver style, or spigot interface matches the fixture yoke or hanging bracket. Do not solve a mismatch with a stack of washers, an undersized bolt, or whatever was left in the bottom of the grip cart.
Beam Clamps, Grid Clamps, and Structural Attachments
Steel I-beams, studio grids, and other building elements need hardware made for those profiles. Beam clamps may be designed for flange edges, vertical suspension, or specific flange thickness ranges. Grid clamps vary widely as well. Some are intended for established studio grid systems, while others are light-duty positioning hardware with no place in an overhead load path.
The structure itself is the governing factor. Do not assume a ceiling channel, acoustic support, sprinkler pipe, conduit, or decorative truss is a rigging point because it happens to be overhead. If the attachment point is not identified and approved for the load, the hardware selection is beside the point.
Eye Bolts, Shackles, and Quick Links
These small components deserve large attention. Use rated hardware with legible markings where required, and verify thread type, diameter, engagement depth, and compatibility with the receiving point. An eye bolt loaded at an angle may require derating or may be unsuitable altogether, depending on its design and the manufacturer’s guidance.
Shackles should be sized so the pin and bow are not crowded by incompatible hardware. Avoid forcing multiple components into a connection intended for one. Quick links can be useful when they are rated and correctly sized, but they are not a substitute for the right shackle, swivel, or dedicated connector in every configuration.
Secondary Safeties Are Not Decorative
A secondary safety cable, wire-rope sling, or rated lanyard is there to catch equipment if the primary attachment fails. It should be independent of the primary connection, short enough to limit shock and drop distance, and routed so it does not introduce a new failure point.
Wrapping a safety around the same weak bracket as the primary clamp does not create meaningful redundancy. Neither does clipping it to a moving yoke in a way that pinches the cable when the fixture is aimed. The secondary should attach to a suitable fixture point and a separate supporting point on the pipe, grid, or structure.
Inspect safeties for kinks, crushed ferrules, frayed wire rope, bent hooks, damaged carabiners, and unreadable tags. Retire questionable pieces. A safety cable costs less than the time spent explaining why a camera, monitor, or crew member was under an unsecured fixture.
Plan for Real Set Conditions
A clean prep-bay rig and a working-stage rig are not always the same animal. Heat, vibration, rain, dust, cable weight, frequent focus changes, and rushed adjustments all affect the system. A compact LED fixture may be light, but its power supply, data chain, and mounting accessories can create cable pull that changes how the rig behaves.
Keep power and data organized so cables do not load connectors, interfere with pan and tilt, or become accidental hangers. Use appropriate cable support and strain relief. Where a fixture needs frequent repositioning, select hardware that allows controlled adjustment without compromising the primary connection or secondary safety.
Rental can be the smart move for specialty clamps, larger truss packages, chain hoists, or project-specific rigging requirements. Buying makes sense for the repeat-use pieces that live in your studio kit: rated pipe clamps, safety cables, hardware bags, baby pins, and purpose-built mounting adapters. The dividing line is usually frequency of use, inspection responsibility, and whether the gear will spend more time earning than sitting on a shelf.
A Practical Pre-Hang Check
Before anyone goes under the rig, verify the full system. This is not paperwork for paperwork’s sake. It is the short pause that catches a reversed coupler, missing pin, wrong pipe size, or safety clipped to the wrong place.
- Confirm the structure and attachment point are approved for the intended load.
- Check each component’s WLL, orientation, and manufacturer instructions.
- Verify bolts, pins, shackles, and locking mechanisms are fully secured.
- Confirm the fixture is balanced and the yoke or bracket is properly tightened.
- Install an independent secondary safety where required or appropriate.
- Dress power, data, and control cables with adequate strain relief.
- Inspect from the floor and again at working height before opening the area below.
Build a Hardware Kit That Saves the Day
For routine studio work, a well-organized rigging kit beats a heroic last-minute workaround. Keep common pipe sizes and fixture interfaces in mind, then stock reliable, rated components that match them. Separate overhead-rated hardware from general-purpose grip bits, label it clearly, and keep inspection status visible.
Walter Lighting & Grip supports the production-side reality of this work: crews often need a specific coupler, safety, adapter, or mounting part now, alongside the fixtures and grip equipment it supports. The goal is not to own every oddball part ever made. It is to know your standard system, source compatible components quickly, and avoid making the ceiling your test bench.
Good rigging hardware disappears into the job. The lights hold their position, the cables stay managed, and the crew can focus on the shot instead of glancing upward. That is exactly how it should be.
