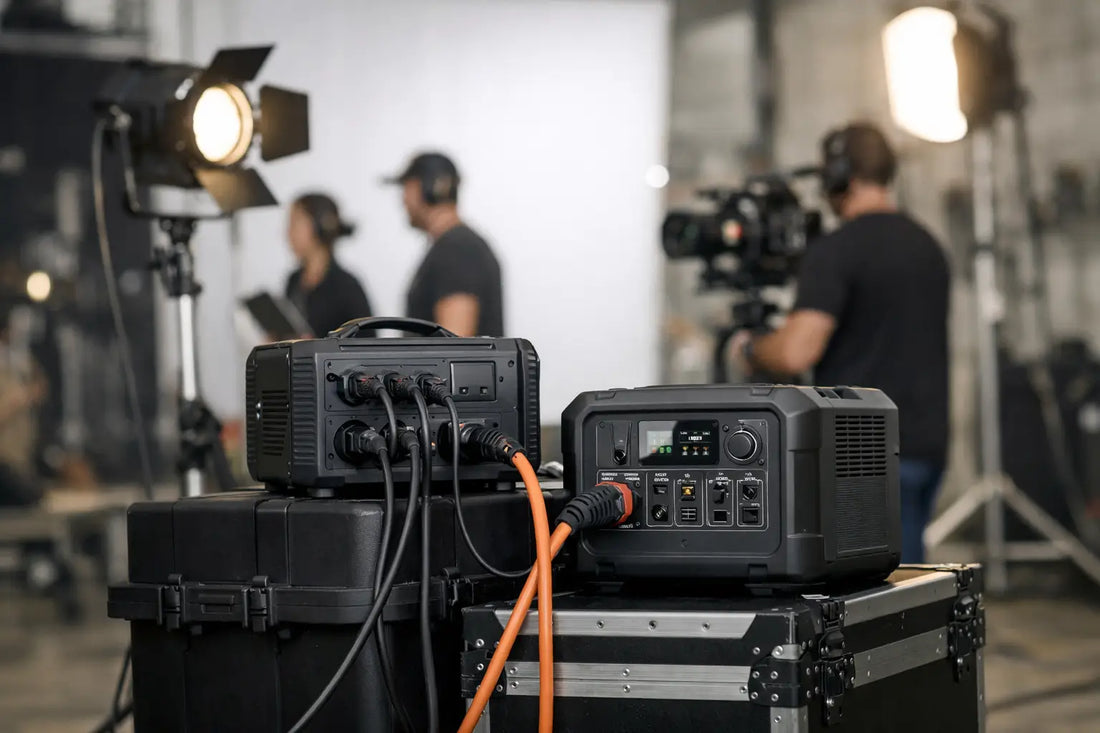

Studio Power Planning for Sets That Keep Moving

A lighting package can look perfectly organized on the cart and still bring a shoot to a halt the moment the first 4K fixture comes up. That is usually not a lighting problem. It is a studio power problem: too much load on the wrong circuit, a distribution plan that was assumed rather than checked, or one practical outlet quietly sharing power with half the room.

For a working stage, photo studio, video podcast room, or commercial set, power planning belongs in preproduction alongside the lighting plot and equipment order. The goal is not simply getting fixtures turned on. It is supplying clean, safe, manageable power that leaves room for changes once the director asks for one more unit, one more monitor, and a haze machine "just for atmosphere."

Start Studio Power With the Actual Available Service

Before adding fixture wattages, establish what the location can truly provide. A wall receptacle is not a power plan. Identify the service type, voltage, available amperage, panel location, circuit layout, and whether the production has dedicated circuits or is sharing a building with offices, HVAC, kitchen equipment, or neighboring tenants.

Many smaller US studios operate from 120V branch circuits, often 15A or 20A. Larger facilities may have 120/208V three-phase service, while other locations use 120/240V single-phase service. Those details affect the distribution equipment, connector type, balancing strategy, and what can be safely supplied to higher-draw fixtures.

Ask for current electrical documentation when it exists, but verify conditions on site. A labeled panel is useful, although labels can be old, incomplete, or optimistic. A qualified electrician or experienced power technician should confirm circuits and service capacity before production loads are connected. Never treat a breaker panel as a place for trial-and-error problem solving.

There is also a difference between a studio built for production and a converted warehouse with a few outlets added after the fact. The latter may be an excellent-looking space, but it may require a more conservative lighting package, a generator plan, or temporary distribution installed by qualified personnel.

Calculate the Load Before the Truck Is Packed

Every device has a rated power draw, usually shown in watts, amps, or both. The basic planning relationship is simple: watts divided by volts equals amps. A 1,200W fixture on a 120V circuit draws roughly 10 amps. That figure is useful, but it is only the start.

Add every load that will live on the circuit: fixtures, ballasts, practicals, monitors, battery chargers, fog or haze equipment, video village, motors, and the occasional coffeemaker that has no respect for a call sheet. Include gear that may be added later in the day, not just the units on the initial plot.

For continuous loads, crews commonly plan below the breaker’s full rating rather than treating 15A or 20A as a target. The exact allowable load depends on local electrical code, the equipment, and how long it will operate. A qualified professional should make the final call. From a production standpoint, building in headroom is simply good insurance against nuisance trips and last-minute changes.

LED fixtures help, but low draw does not erase planning. A stage can have dozens of LED units, practical lamps, wireless receivers, displays, chargers, and effects equipment spread across circuits. Modern fixtures may reduce the need for large cable runs, yet the overall system still needs a circuit map and a person responsible for it.

Do Not Plan From Fixture Names Alone

"LED panel" and "COB light" are not electrical ratings. Check the manufacturer specification for each exact model and its operating mode. Some fixtures draw differently at full output, during startup, with certain color settings, or when using an accessory. A unit powered by a separate ballast has its own requirements, and a fixture capable of battery operation may still need substantial AC power for long takes.

Keep a load sheet that lists the fixture, rated draw, circuit assignment, connector, and intended location. It does not need to be glamorous. It needs to be legible at 6:15 a.m. when the gaffer, best boy, and studio manager are all looking at the same problem.

Match Distribution to the Scale of the Set

Small setups may be served safely with clearly identified house circuits, appropriate extension cables, and a disciplined circuit map. Once the package grows, purpose-built distribution becomes the better answer. Professional distro boxes, breaker-protected splitters, feeder cable, and proper adapters give crews a controlled way to move power where it is needed.

The right approach depends on the service, total load, distance, fixture mix, and how often the set will change. A small tabletop shoot may need only a few dedicated 20A circuits. A cyc stage with multiple high-output key lights, overhead rigging, video playback, and practical builds may need a temporary distribution system or a dedicated studio tie-in.

Avoid building a power system from consumer power strips and mystery adapters. They are not substitutes for production-rated distribution, particularly when equipment is drawing significant current or cable is running across a working floor. Use equipment with appropriate ratings, intact connectors, proper grounding, and overcurrent protection where required.

Cable management matters just as much as capacity. Route cable to keep exits clear, prevent trip hazards, and avoid pinch points at doors, rolling stands, lifts, and set walls. Use cable ramps or covers where traffic crosses a run. A clean cable path makes the stage faster to work in and makes it much easier to spot a damaged line before it becomes a real problem.

Balance the Creative Plan With the Electrical Plan

The most efficient lighting plan is not always the one with the fewest fixtures. It is the one that delivers the look while respecting the available power, rigging limits, space, heat, and crew time. That may mean using a high-output LED as the primary source rather than several legacy tungsten units, or it may mean keeping a tungsten practical because its dimming behavior and camera look are exactly right.

This is where fixture selection affects studio power directly. LED options from brands such as Aputure, Astera, Nanlux, amaran, and Kino Flo can provide strong output with lower electrical demand than traditional sources. Battery-capable fixtures can simplify a quick setup or eliminate a cable run in frame. However, batteries bring their own workflow: charging capacity, runtime planning, spare inventory, and a place to manage heat and charging safely.

DMX and wireless control also influence the plan. A fixture may be electrically powered from one location but controlled from another, which is fine until someone loses track of which circuit feeds it. Label both ends of every cable and label distribution outputs by circuit. Good labels save more time than a long explanation over comms.

Plan for the Things That Are Not Lights

Production power does not belong to the electric department alone. Camera, sound, art, editorial, client monitors, wireless video, network equipment, hair and makeup stations, and catering all draw from the same building service unless the plan separates them.

Sensitive electronics deserve particular attention. Video monitors, computers, data systems, and charging stations can be affected by poor power conditions or an overloaded shared circuit. Coordinate with the departments using that equipment, especially on multicamera shoots and livestreams where a power interruption can cost more than a relight.

For studios with recurring productions, create a facility power map and update it whenever circuits, outlets, or permanent equipment change. Note panel locations, circuit numbers, outlet positions, voltage, known shared loads, and restrictions. It turns a new crew’s first hour from electrical archaeology into a useful prep conversation.

Make Rental and Purchase Decisions Around Frequency

Owning common cable, adapters, distro accessories, circuit testers, and recurring fixtures can make sense for a studio that works every week. It keeps the basic package consistent and prevents small missing pieces from becoming expensive delays. Higher-capacity distribution, specialty fixtures, generator packages, and project-specific cable quantities are often better rental decisions, especially when demand changes from job to job.

A production-focused supplier such as Walter Lighting & Grip can help crews source both sides of that equation: the everyday grip and electrical pieces that stay in the kit, plus professional lighting and distribution equipment needed for a larger call. The useful question is not whether to own or rent in the abstract. It is whether the gear will earn its shelf space between productions.

Power planning is not glamorous, which is exactly why it pays off. When circuits are mapped, loads have headroom, cable is managed, and the right qualified people have signed off on the system, lighting changes stay creative instead of becoming a breaker-reset tour of the building.
