Scaling production lighting for shoots is the practice of building a repeatable system that delivers the same look across every setup, every day, without rebuilding from scratch each time.

NANLUX 8M Connection Cable for 6 Pin Wired Controller
NANLUX 8M Connection Cable for 6 Pin Wired Controller

Before you scale, gather these basics:

  • A core kit you can replicate across units
  • A written lighting plan for each setup
  • A light meter or camera-based metering workflow
  • Gaff tape, cable ramps, and spare lamps
  • A labeled case system for every fixture and cable

Step 1: Standardize Your Core Production Lighting Kit

Standardization is what separates a scalable setup from a one-off. Pick one fixture family and buy or rent multiples of it.

Essential Equipment for Consistent Output

A working core kit for repeatable product and set work usually includes:

  • Three to four identical LED panels or COB fixtures
  • Two softboxes with grids
  • One beauty dish or small reflector
  • Diffusion frames and a few gel packs
  • Sturdy stands, sandbags, and a rolling case
Pro Tip Label every fixture and cable with a unit number. When you scale to two or three shooting stations, matching gear by number takes seconds instead of minutes.

Step 2: Build a Repeatable Three-Point Lighting Diagram

A three-point setup is the backbone of consistent production lighting. Draw it once, photograph it, and tape the diagram inside your kit case. But a diagram alone does not scale, what scales is a locked geometry you can reproduce without re-metering every product.

The three roles:

  • Key light: the main source, set at roughly 45 degrees to the subject
  • Fill light: softens shadows, usually set opposite the key at lower power
  • Rim light: separates the subject from the background

Locking Geometry So Batch 50 Matches Shot 1

The failure mode in high-volume work is not a bad setup, it is a setup that drifts. A stand gets nudged, a softbox gets rotated, and by product 40 the shadows no longer match product 1. The fix is to convert every position into a repeatable measurement:

  • Mark the floor. Use gaff tape to outline each stand's footprint and write the distance to the subject on the tape (for example, "key, 1.2 m").
  • Fix the height. Note the stand height and the tilt angle on the diagram, not just the horizontal position.
  • Lock the modifier. Mark the softbox's rotation on its speed ring so it returns to the same angle after a swap.
  • Anchor the subject. A taped subject position (or a turntable with a marked home point) removes the largest variable in the whole setup.

Positioning Key, Fill, and Rim Lights for Soft vs. Hard Light

Soft light comes from a large source close to the subject, like a softbox or diffuser. Hard light comes from a small source placed farther away, which sharpens shadow edges.

Scaling the Same Diagram Across Multiple Stations

Pro Tip Photograph each finished setup from the same two angles every time, one wide shot of the whole station and one tight shot of the key light's position. Those two images let a crew rebuild a station from scratch without a walkthrough.
Aputure INFINIBAR Multi-Light Shaping Kit (w/ case)
Aputure INFINIBAR Multi-Light Shaping Kit (w/ case)

Step 3: Lock In Camera Settings and Color Temperature

Consistency starts with locked camera settings. Once you find a working exposure, write it down and repeat it.

Set and record:

  • Aperture: f/8 to f/11 for sharp product detail, with enough depth of field
  • Shutter speed: match your light type to avoid flicker
  • ISO: keep it low, usually 100 to 200
  • White balance: matched to your lights, not auto
Watch Out Leaving white balance on auto is the most common scaling mistake. One frame drifts warm, the next goes cool, and you spend hours fixing it in post.

Step 4: Plan Lighting Power Distribution for Film Sets

Lighting power distribution for film sets is the plan for getting stable power to every fixture without tripping circuits or overloading a single feed. It is boring work that saves entire shoot days.

Plan it like this:

Aputure Ls 1200 Four Light Bracket →

  • Add up the wattage of every fixture on one circuit
  • Keep total draw well under the circuit's rated limit
  • Split high-output lights across separate circuits
  • Use proper cable ratings and grounded connections
  • Keep cables off walkways with ramps or mats
Key Takeaway The cheapest insurance on any set is a power plan drawn before the shoot, not during it.

Step 5: Meet Studio Lighting Safety Standards

Studio lighting safety standards are the electrical, rigging, and heat rules that keep a set legal and safe. In Canada, this work falls under provincial occupational health and safety rules and the Canadian Electrical Code, so check the rules for your province before you scale. Diligent oversight of these power requirements remains the most effective method for identifying electrical hazards before they compromise the integrity of your production environment.

Core practices:

  • Ground every fixture and use rated cables
  • Sandbag every stand, especially tall ones
  • Keep heat sources clear of fabric and talent
  • Inspect cables and connectors before each shoot
  • Train crew on lockout and rigging basics

Step 6: Troubleshooting Lighting Gear on Set

Troubleshooting lighting gear on set is the skill of finding the fault fast and keeping the shoot moving. Carry spares and work through causes in order.

Quick checks:

  1. Swap the cable first. Cables fail more than fixtures.
  2. Test the fixture on a known-good circuit.
  3. Check the controller and DMX connection.
  4. Confirm the power source is stable.
  5. Swap in a spare fixture and keep rolling.

Common Mistakes to Avoid When Scaling Production Lighting

The biggest mistake is buying mismatched gear. Ten different fixtures mean ten different color and output behaviors, and no repeatable look. But the mistakes that actually kill a scaled shoot are quieter than that, they show up at product 30, not product 1.

Mistakes That Only Appear at Batch Scale

  • Letting the setup drift. Without taped floor marks and locked modifier angles, each product gets a slightly different key position. The drift is invisible frame to frame and obvious across a gallery.
  • Re-metering every product. If exposure and ratio are locked, you should not be metering each item. Re-metering introduces human variation into a system that was already correct.
  • Running mismatched stations. Two stations built from the same diagram can still diverge if fill power or subject distance differs. A reference frame at each station catches this before the batch, not after.
  • Ignoring power limits until a breaker trips mid-take. Add up fixture wattage per circuit before the shoot, not during it.
  • Leaving white balance on auto across a batch. One frame drifts warm, the next goes cool, and you spend hours fixing it in post.
  • Storing gear unlabeled. Unlabeled cases slow every setup and make it impossible to rebuild a station by number.
  • Forgetting spares. One bad cable can cost hours when there is no backup unit on the cart.

Scaling in a Small Studio

Limited square footage is the constraint most guides ignore. You do not need a larger room to scale, you need to reclaim the space you have:

  • Shoot vertically where possible. A copy-stand or overhead boom setup uses floor space that a full three-point layout would consume.
  • Use the ceiling. Overhead booms and wall-mounted arms free the floor for stands, carts, and movement.
  • Roll, don't rebuild. Keep each station on locking casters so it can be pushed aside between batches instead of torn down.
  • Store by station, not by fixture type. A labeled cart per station means setup is a roll-in, not a scavenger hunt.
  • Control spill with grids. In a tight room, a grid on the softbox keeps light off the walls and reduces bounce that would otherwise change your ratio.

A Simple Batch Check

Before committing to a full run, shoot the first and last product of the batch back to back and compare them. If the shadows, color, and highlight rolloff match, the system is holding. If they do not, fix the drift at the source, a stand mark, a fill setting, or a white balance lock, rather than correcting it in post.

Frequently Asked Questions

How do you maintain lighting consistency when scaling a production?

Lock your camera settings first: fixed white balance, ISO, aperture, and shutter speed. Use a color temperature meter to match every fixture to the same Kelvin value, then keep a lighting diagram taped to the case so any crew member can rebuild the setup. Test each new light against your reference frame before rolling. Consistency comes from repeatable measurements, not from memory.

What equipment is essential for scaling lighting setups on professional sets?

You need a matched set of fixtures (at least three identical units for key, fill, and rim), softboxes or diffusers for modifier consistency, sturdy stands and sandbags, and a reliable power distribution plan with proper cable lengths. A wired controller like the Nanlux 6 Pin Wired Controller for Dyno & Evoke Series ($279.00) gives you precise 0.1% brightness and CCT adjustments across fixtures, which matters when you are matching multiple lights.

What are the safety standards for high-output lighting in film production?

In Canada, follow CSA electrical standards and your provincial occupational health and safety regulations for set wiring, cable protection, and heat clearance around fixtures. Use properly rated distribution boxes, never daisy-chain beyond manufacturer limits, secure all stands with sandbags, and keep fire extinguishers rated for electrical fires within reach. Check that every fixture carries a valid certification mark before it goes on set.

How do you manage power distribution for large-scale lighting rigs?

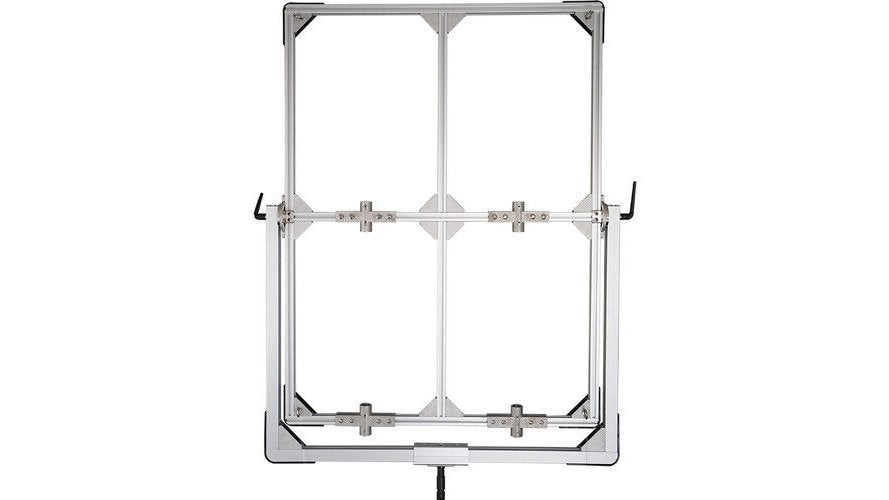

Map your total wattage before the shoot day. Four Aputure LS 1200d Pro fixtures in an Aputure LS 1200 Four Light Bracket ($1,600.00) draw up to 4800W combined, so you need a distribution plan that handles that load without tripping breakers. Assign each circuit a maximum load, label every cable run, and keep a spare circuit open for backup. Use an 8m connection cable such as the Nanlux 8M Connection Cable for 6 Pin Wired Controller ($89.00) to keep controllers safely away from hot fixtures.

Scaling production lighting is really a systems problem, not a gear problem. The crews that stay consistent are the ones with a locked kit, a written plan, and spares within reach. Walter Lighting & Grip supports that work with lighting, grip, and photography gear, the expendables you burn through on every shoot, and rental options when a project needs more than you own. Get started with Walter Lighting & Grip and build a lighting setup that holds up take after take.
