How to Rig Overhead Frames Safely

A 12x12 that looks fine at call can turn into a kite by lunch. That is usually when people stop asking casually about how to rig overhead frames and start asking the right question - how to rig them safely, repeatably, and without turning a simple diffusion setup into the most stressful part of the day.

Overhead frames are basic grip language on film, TV, and photo sets, but they are not casual hardware. Once you lift fabric over talent, camera, or clients, every choice matters: frame size, tubing, corners, ears, stands, head height, tie-offs, and what the weather is doing five minutes from now. The goal is not just to get the rag in the air. The goal is to build a system that carries the load cleanly and gives your crew enough margin when conditions stop being polite.

How to rig overhead frames starts with load path

The cleanest way to think about overheads is load path. Weight starts at the fabric and frame, travels through frame ears or pickups, into the stand heads, down the risers, and finally into the ground through the legs, wheels, or base. If any part of that chain is undersized, badly seated, or poorly balanced, the whole setup gets sketchy fast.

That is why experienced grips do not start by asking which diffusion they want. They start by asking what the frame size is, what hardware the frame uses, how high it needs to fly, whether it is static or needs to travel, and whether the environment is controlled or exposed. A 6x6 in a studio is one conversation. A 12x12 on a driveway with afternoon gusts is another conversation entirely.

Frame material matters too. Pipe frames, speed-rail builds, butterfly frames, and ultrabounce or diffusion frames all behave a little differently depending on weight and flex. A lightweight frame can make setup easier, but if it is too flexible for the span or fabric, you are buying yourself sag and hardware stress. Heavier-duty frames carry more confidence, but now your stand package has to match.

Pick the frame size and support package together

One of the most common mistakes is choosing the overhead first and the support second. It should happen at the same time. Bigger frame means heavier hardware, taller stand, larger footprint, and more ballast. There is no clever shortcut around that.

For smaller frames like 4x4 and many 6x6 builds, combo stands or beefier roller stands may be appropriate depending on the frame design, pickup points, and indoor versus outdoor use. Once you move into 8x8, 12x12, and larger butterflies, you are generally in crank stand, combo stand, or other heavy support territory with proper ears, beefy grip heads where applicable, and serious attention to ballast and tie-downs.

The stand choice is not just about weight capacity on paper. It is about torsional stability, leg spread, surface conditions, and the height you need at working load. A stand that technically supports the weight but gets squirrelly near max height is the wrong stand. The same goes for undersized heads or worn receivers. If the hardware has play on the ground, it will not improve in the air.

Match ears, heads, and receivers correctly

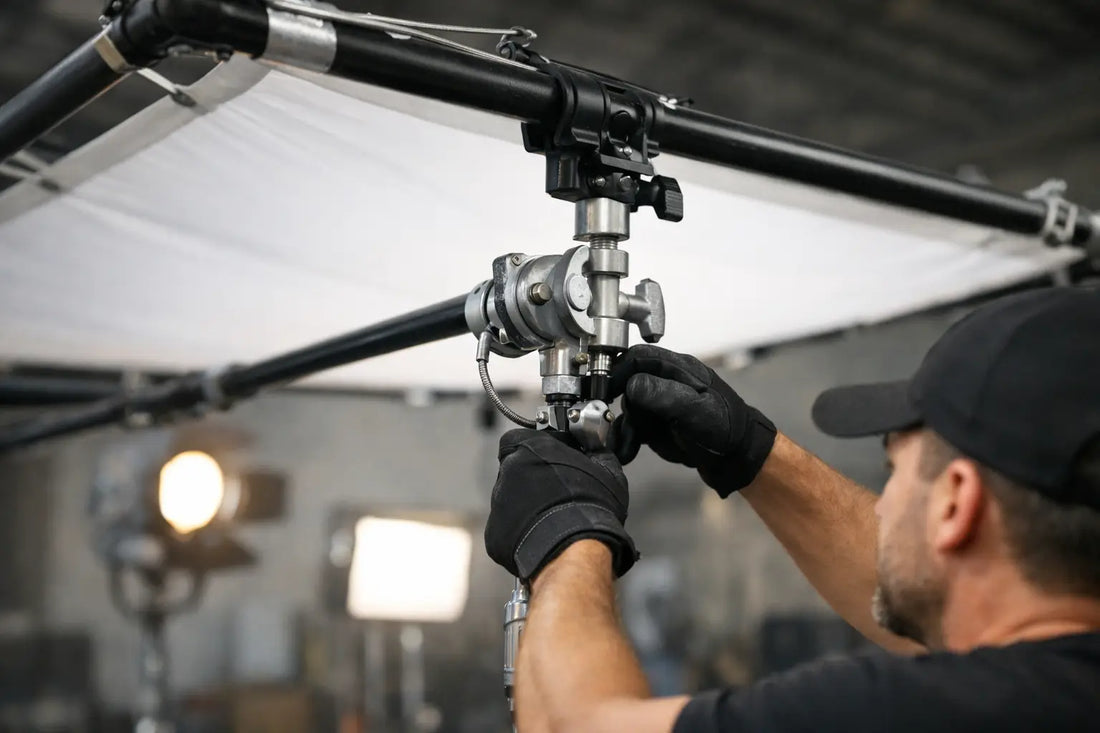

Most overhead frames rely on frame ears or dedicated pickups that interface with the stand head or receiver. Those connection points need to be fully seated, pinned where appropriate, and oriented so the load is carried the way the hardware was designed to carry it. Half-seated receivers and rushed hand-tightening are how a normal day gets memorable for the wrong reasons.

Keep your hardware families straight. Junior and baby fittings are not interchangeable just because someone found an adapter in the cart. Adapters are useful, but every added connection is another possible failure point and another place for slop to creep in. Cleaner builds are usually safer builds.

Indoor rigs and outdoor rigs are different jobs

Inside a stage or studio, overhead frames are mostly about clean support, footprint management, and keeping the working area safe. Outside, wind becomes the boss. Fabric choice suddenly matters as much as frame size.

A full diffusion that behaves beautifully indoors can become a giant sail outdoors. In many situations, a grid cloth, half soft frost, or bounce may still be workable with the right support and weather conditions, but there is no universal safe recipe because wind is not consistent and set locations are weird. Alleys funnel gusts. Parking lots reflect heat. Building corners create turbulence. The frame does not care what the forecast said at breakfast.

If you are rigging outside, lower is safer than higher, smaller is safer than bigger, and constant supervision beats optimism every time. If the wind picks up, you do not negotiate with it. You bring the frame down.

How to rig overhead frames with proper ballast

Ballast is not decoration. It is part of the build. Every overhead stand should be weighted appropriately for the frame, height, surface, and conditions, with the load centered as effectively as possible over the strongest part of the stand footprint. On uneven ground, this gets more complicated, not less.

Sandbags are standard because they are fast, predictable, and easy to place correctly, but they are not magic. A badly positioned bag does not help much, and a stand with too much sail area may need tie-downs, outriggers, or a complete rethink rather than just more bags thrown at the problem.

On rolling stands, wheel locks are only step one. If the frame should not move, build it like it should not move. On hard surfaces, especially outdoors, crews sometimes trust braking systems more than they should. The moment load shifts or wind catches fabric, that confidence can disappear quickly.

Tie-offs need to make sense

Guy lines and tie-downs can add stability, but only when they are run to solid anchor points and tensioned sensibly. Random tie-offs to whatever is nearby are not pro solutions. They can introduce side loads, create trip hazards, and still fail when the frame needs help most.

A clean tie-off plan accounts for direction of pull, pedestrian traffic, equipment paths, and what happens if one anchor lets go. If the tie-downs create more problems than they solve, the rig probably needs to come down and be rebuilt another way.

Build procedure matters more than speed

A calm, repeatable setup process saves time because it prevents resets. Build the frame at a manageable height, inspect corners and tubing, attach the rag cleanly, and verify ears or pickups before lifting. Raise evenly. Watch for twist. Stop if one side binds or one stand starts carrying load unevenly.

Good crews talk through the lift. Nobody should be guessing which side goes first or whether the frame is locked. Once the overhead is at working height, check the frame for level, check the stands for plumb, check ballast again, and look at the whole footprint like a person who did not build it. Fresh eyes catch dumb problems.

If the setup needs to travel with talent or sun position, plan that before the frame leaves the ground. Mobile overheads are useful, but they are not forgiving. The route matters, the surface matters, and the speed absolutely matters.

Common mistakes that make overheads sketchy

Most bad overhead rigs are not the result of one dramatic error. They come from a stack of small compromises. Wrong stand. Mixed hardware. Rag too big for conditions. Not enough ballast. Frame too high because someone wanted a cleaner reflection. Crew walks away because the rig looked fine ten minutes ago.

Another common issue is treating manufacturer ratings like blanket permission. Load ratings depend on configuration and do not account for every real-world factor, especially dynamic wind loading. Ratings are useful, but they do not replace judgment.

There is also the classic set-time trap of trying to make one support package do every job. The stand kit that works for a 6x6 overhead indoors is not automatically your 8x8 exterior package, and definitely not your answer for a 12x12 on a windy day. If the job keeps pushing bigger, heavier, or higher, the support package has to scale with it.

Gear quality is not a luxury here

Grip gear is one of those categories where consistency pays for itself. Frames that seat properly, corners that stay true, ears that fit the way they should, and stands from proven manufacturers remove a lot of uncertainty from the build. That does not mean every setup needs the most expensive option on the truck. It means your hardware should be made for production use and matched to the task.

For crews buying rather than renting, this is where a production-focused supplier actually matters. Walter Lighting & Grip carries the kind of frame hardware, stands, heads, and rigging accessories crews use in real workflows, not just gear that looks right in a product photo. That distinction gets expensive fast when you are solving problems on set.

The right answer is sometimes a smaller overhead

There is no trophy for flying the biggest frame. If a 6x6 gets you the shot with less wind load, less setup time, and fewer support headaches, that is the better rig. The same goes for lowering the height, changing fabric, or moving the subject instead of forcing a larger overhead into a bad environment.

That is the part of how to rig overhead frames that matters most: good rigging is not showing off. It is making smart, boring decisions before the frame ever leaves the ground. If the build feels marginal, it probably is. Bring it down, resize it, or rebuild it with the support it actually needs. Your crew will not miss the drama.
