How to Rig Overhead Diffusion Safely on Set
Share
A 12x12 frame of diffusion can make a hard location feel like a controlled stage - right up until wind, an improvised attachment point, or one skipped safety turns it into a very expensive sail. Knowing how to rig overhead diffusion means thinking beyond the fabric. The frame, the support structure, the load path, the hardware, the clearance below, and the changing conditions around the set all matter.
Overhead diffusion is one of the most useful ways to control daylight and soften a source without compromising the frame. It also puts equipment and potential energy above cast and crew. Treat every overhead as a rigging job, not a stand accessory with ambitions.
Start With the Shot and the Load
Before anyone opens a bag of rags, establish what the overhead needs to do. Are you taking the edge off direct sun for a wide exterior, creating a soft ceiling over talent, or controlling a compact tabletop setup? The answer determines the diffusion material, frame size, height, support method, and whether the plan is sensible for the conditions.
A light textile on a 4x4 frame indoors may be a straightforward goalpost or two-stand setup. A 12x12 or 20x20 outside is a different animal. Bigger frames create more surface area, and surface area catches wind. Even an apparently calm day can produce gusts around buildings, trucks, and open doors. If the rig needs to stay up through a long exterior day, plan for the worst realistic condition, not the weather app’s optimistic screenshot.
Work backward from the frame. Know its dimensions and weight, then account for the textile, corners, clamps, lanyards, skirts, and any hardware hanging from the structure. More importantly, identify the load path: frame to attachment, attachment to pipe or stand, stand or pipe to rated support, and support to the ground or building structure. Every component in that chain needs an appropriate working load limit and must be used as intended.
When the load, structure, or attachment point is uncertain, stop and bring in a qualified rigger or structural professional. A grid, truss, ceiling point, scissor lift, or building steel is not automatically approved because it looks substantial. The answer is documentation, inspection, and competent oversight - not a confident guess from below.
Choose a Support Method That Fits the Location
The cleanest overhead rig is usually the one that uses the fewest compromises. For ground-supported work, a properly built pipe goalpost, overhead frame system, or appropriately rated stands with a crossbar can be effective when sized for the job. Use stands with enough height capacity and a footprint suited to the load, then orient legs and add ballast according to the manufacturer’s guidance and the forces involved.
For studio work, a rated grid or installed pipe system can provide a cleaner footprint and more control over positioning. Use approved clamps, couplers, cheeseboroughs, or other hardware designed for the pipe diameter and load. Do not substitute a convenience clamp for a rated connection simply because it happens to fit. Grip gear is full of pieces that look alike from six feet away and behave very differently under load.
A condor, boom lift, or truss system may be the right answer for a large exterior overhead, but each comes with its own operating rules and restrictions. Keep the lift operator, key grip, gaffer, and production on the same page about placement, movement, weather limits, and exclusion zones. If a piece of equipment is being used as a support point, confirm that use is allowed by its manufacturer and your site plan.
How to Rig Overhead Diffusion With a Clean Load Path
Build the support structure before sending the diffusion up. Assemble frames on the ground, inspect corners and speed rail, and make sure the rag is properly tied, clipped, or secured to prevent loose sections from flapping. A textile that shifts in the frame changes the load and can work hardware loose over time.
Raise the frame in a controlled sequence with a designated crew lead calling the move. Keep hands clear of pinch points, communicate before lifting, and do not let one side race ahead of the other. Once at working height, level the frame and check each connection before fine-tuning the position.
The primary connection should carry the intended load directly and predictably. Avoid side-loading hardware, loading a stand beyond its intended axis, or creating awkward angles that introduce leverage the setup was never designed to handle. Keep force centered over the support whenever possible. A tall stand supporting a frame offset several feet from its centerline may look tidy in the monitor, but physics is not impressed by tidy.

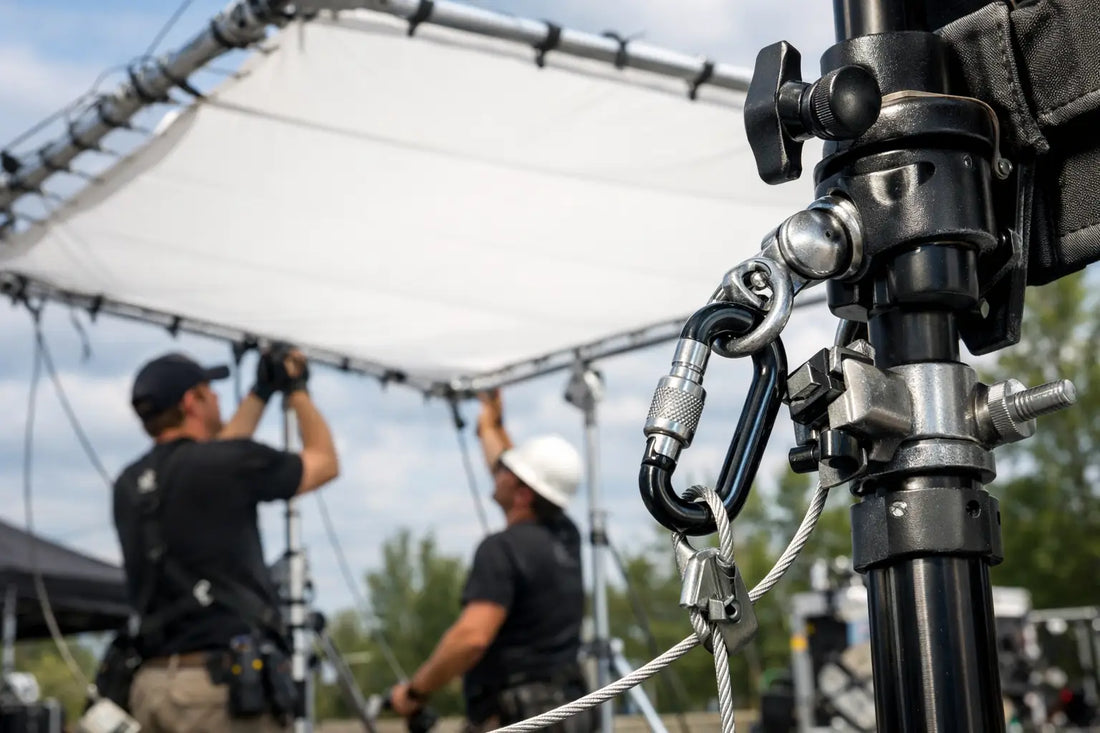

Add independent safety backups to every overhead component that could fall. A safety cable or rated lanyard should be attached independently from the primary connection and installed so it can actually arrest a failure. It is not decoration, and it should not be clipped to the same failing point it is meant to back up. Use appropriately rated safeties and connectors, with enough length to work without allowing a damaging drop.
After the rig is up, a qualified crew member should inspect the whole chain: frame corners, textile attachment, primary clamps, safeties, stand locks, ballast, pipe supports, and the area beneath. Repeat the check after any adjustment, weather shift, or accidental contact with the rig.
Match the Diffusion to the Conditions
Diffusion choice is a lighting decision and a rigging decision. A lighter material may be easier to fly and kinder in a breeze, while a heavier or denser fabric may deliver the quality of light the cinematographer wants. Grid cloth, silk, ultrabounce, and solid textiles all have different wind behavior and different effects on exposure and contrast.
For daylight exteriors, consider whether a smaller overhead closer to the subject can do the job instead of a giant frame placed high and far away. The smaller rig may be faster, safer, and easier to shape. It can also be easier to reposition as the sun moves. That said, a tight overhead can create edge problems or limit talent movement, so size it for the frame and blocking, not just the light meter.
In gusty conditions, reducing surface area is often smarter than piling on sandbags. More ballast helps stabilize ground-supported equipment, but it does not make a large sail safe in unlimited wind. Lower the frame, switch to a smaller rag, use a more open material where creatively acceptable, or bring the overhead down. The fastest way to lose time is to wait until the wind makes the decision for you.
Hardware Details That Prevent Bad Days
Use gear that is rated, inspected, and appropriate for professional overhead work. That includes clamps, couplers, carabiners, shackles, steel, chain, rope, pipe, frames, stands, and lifting equipment. Retire damaged hardware rather than hoping it has one more day in it. Bent gates, distorted clamps, frayed ropes, cracked welds, and stripped knobs are all reasons to take a piece out of service.
A few habits keep overhead setups more predictable:
- Keep manufacturer labels and working load limits legible, and never exceed the lowest-rated component in the system.
- Use safety cables or rated lanyards independently for overhead fixtures, frames, and accessories.
- Bag or ballast stands correctly, with weight low and placed to resist the actual direction of force.
- Maintain a clear drop zone below the rig, especially during assembly, adjustment, and strike.
- Tape or manage loose lines so they cannot snag while a frame is moving.
Plan for Adjustments and Strike
Overheads rarely stay untouched. The sun moves, talent marks shift, cameras change lenses, and somebody notices the frame in a reflection. Build the rig so adjustments can happen methodically. Establish who has authority to move it, who calls the lift or lower, and who clears the area beneath before work begins.
For a long day, check hardware periodically. Vibration, temperature changes, foot traffic, and wind can alter a setup that was solid at call time. If production needs a quick adjustment, quick should mean organized and communicated, not one person reaching up to loosen a clamp while everyone else keeps rolling.
Strike deserves the same attention as the build. Remove or secure the textile before breaking down supports when possible, lower in a controlled manner, and keep the crew out from under the load. Pack frames and hardware so the next setup starts with gear that is easy to inspect instead of a knot of mystery steel.
The right overhead diffusion rig gives the lighting team control without becoming the loudest concern on set. Build conservatively, use purpose-built grip hardware, and let the conditions dictate the plan. If the setup feels like it needs luck, it needs a different setup.
