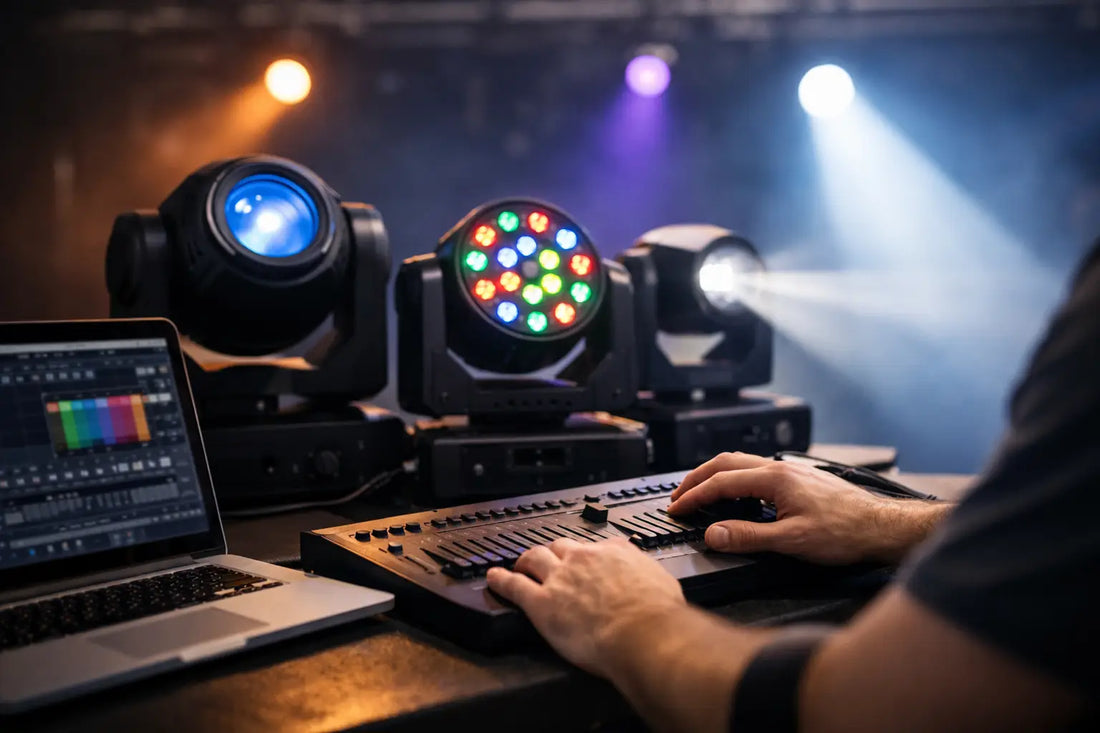

How to Program DMX Fixtures Without Set Chaos

A lighting cue that misses because two fixtures share an address is not a creative problem. It is a timeout problem. Knowing how to program DMX fixtures lets the lighting team make deliberate changes quickly, whether you are building a practical gag for a commercial, controlling RGB tubes on a stage, or programming a repeatable look for a multi-day shoot.

DMX is straightforward once the order of operations is clear: choose the fixture mode, assign addresses, build the physical data path, patch fixtures into the controller, then create scenes or cues. Skip one of those steps and you can spend an expensive hour chasing what looks like a dead light.

Start With the Fixture Mode and Channel Footprint

Before assigning a DMX address, choose the DMX personality or mode on every fixture. The same light may offer a basic mode for quick intensity and color control, an extended mode with separate hue, saturation, CCT, green-magenta adjustment, effects, pixel zones, fan settings, and more. The selected mode determines how many DMX channels the fixture occupies, also called its channel footprint.

A simple RGB fixture might use three channels: red, green, and blue. A full-featured moving light can use 20, 40, or far more. Pixel fixtures can consume channels quickly because each pixel or cell may need independent color control. Check the fixture manual or its onboard menu rather than guessing. Two units from the same manufacturer may have very different personalities.

For a fast-moving film set, the smallest mode that delivers the control you actually need is often the smart choice. If you only need brightness, CCT, and a touch of green-magenta correction, there is little value in patching a complex pixel mode. For a music video, live effect, or virtual production application, that extended mode may be exactly what the programmer needs.

How to Program DMX Fixtures Step by Step

1. Build an address plan before touching the menu

A DMX universe contains 512 control channels. Every fixture needs a unique starting address within that universe, and its footprint must fit before channel 512. If a fixture is in a 16-channel mode and starts at address 1, it occupies channels 1 through 16. The next fixture should begin at 17, not 2.

Write the plan down in a lighting plot, console patch sheet, or a simple notes file. Label fixtures by a useful physical reference, such as “Window tube 1,” “Stage left key,” or “Practical desk lamp.” “Light 7” is fine until Light 7 gets moved to another room and nobody knows which one it is.

For a modest setup, consecutive addressing keeps troubleshooting simple. For larger rigs, leave address gaps between fixture groups. That gives you room to add another unit without renumbering half the stage. The trade-off is that a patch with wide gaps requires cleaner documentation.

2. Set the address on each fixture

Open the fixture’s menu and locate DMX settings. Depending on the manufacturer, the address may appear as DMX Address, Start Address, DMX Channel, or simply Address. Enter the starting address from your plan, then confirm the fixture is set to DMX control rather than standalone, auto, sound-active, Bluetooth-only, or a proprietary wireless mode.

On an RGB tube, for example, set the control mode first, select the desired personality, then enter the start address. The menu order varies, but the principle does not. A correct address in the wrong control mode will not respond to the console.

If the fixture supports RDM, remote device management can identify and configure compatible lights from an RDM-capable controller. It can save real time on a grid or a large studio install. Still, do not rely on it blindly. Older fixtures, wireless DMX links, splitters, and mixed-brand systems do not always pass RDM reliably. Verify the actual address at the fixture when the schedule matters.

3. Run DMX in a clean signal path

Connect the controller’s DMX output to the first fixture’s DMX input, then daisy-chain from that fixture’s output to the next input. Use proper DMX cable, not an unverified audio XLR cable. They may share connectors, but their electrical specifications are different, and a questionable cable can produce flickering or intermittent control that only appears after the crew is ready to roll.

Many current fixtures use 5-pin XLR, while compact film and photo fixtures often use 3-pin XLR or adapters. The connector shape is not the whole story. Use correctly wired adapters designed for DMX, and confirm the pinout when combining gear from different sources.

A DMX splitter is preferable to one long, branching chain. It creates isolated runs to different set areas, reduces the impact of a failed fixture or cable, and makes troubleshooting much faster. At the end of a long wired run, install a DMX terminator to reduce signal reflections. It is a small accessory with a very unglamorous job, which is exactly why it tends to be forgotten until things get weird.

Wireless DMX can be useful for practicals, moving set pieces, and locations where cable runs are not realistic. Treat wireless receivers as part of the signal path: confirm transmitter and receiver pairing, universe assignment, radio range, and line of sight where possible. Do not assume that a fixture showing a wireless icon is receiving the correct universe.

4. Patch the fixtures into the controller

Addressing happens on the fixture. Patching happens in the controller, software, or app. The patch tells the control system what fixture profile to use, which universe it lives on, and where its channel range begins.

Choose the exact fixture profile and mode whenever it is available. A profile maps the controller’s controls to the fixture correctly, so a CCT encoder adjusts color temperature instead of accidentally triggering an effect channel. If the exact profile is not available, use a generic dimmer, RGB, RGBW, or multi-channel profile only when you understand the fixture’s DMX chart well enough to map channels manually.

The controller patch must match the fixture’s physical settings. A light addressed to Universe 1, Channel 101 will not respond if the console patch says Universe 2, Channel 101. This sounds obvious, but universe mismatches are common when a rig combines a hardware console, Art-Net or sACN nodes, wireless transmitters, and a few fixtures controlled from an app.

5. Test control one parameter at a time

After patching, bring up intensity first. If the fixture responds, test its basic color or CCT controls, then test any required effects, pixels, pan and tilt, or shutter functions. Do this before programming looks. A fixture that dims correctly but displays the wrong color may have the wrong personality loaded, an incorrect fixture profile, or a shifted address.

When testing multiple identical units, temporarily set each one to a different intensity or color. This confirms that each fixture has independent control. If two lights always behave identically, they may share an address. If nothing responds, start at the controller output and work forward through the first cable, first fixture, and first splitter rather than unplugging the entire rig at random.

Build Scenes for the Way the Set Will Work

Once the fixtures respond correctly, program scenes or cues around production needs, not just the initial look. A useful cue stack might include a working base level, an adjusted camera look, an alternate look for a different lens direction, a practical dim state, and a full-reset scene. Name cues clearly enough that someone stepping in can operate them without decoding your shorthand.

For narrative and commercial work, record fixture groups in a way that matches the physical layout: windows, overheads, practicals, accents, and background color. Grouping by fixture type alone can slow down adjustments. The gaffer usually wants to pull down “all window sources,” not hunt through tubes, panels, and Fresnels one category at a time.

Be cautious with effects programming. A chase or pixel effect may look great during setup but become a continuity headache if its speed is not repeatable. If a lighting effect needs to match across takes, record the timing, set a known starting point, and give the operator an unambiguous cue to trigger.

Troubleshoot the Failures That Actually Happen

Most DMX issues come down to mode, address, patch, or cable path. Start with the simplest check: can the fixture respond locally, and is it set to DMX mode? Then confirm its address and channel footprint. Next, compare the controller patch against the fixture settings.

If one fixture is dead in the middle of a daisy chain, bypass it with a known-good cable. If fixtures after it come back, the issue is likely that fixture’s DMX-through connection or the cable feeding it. If a whole branch fails, inspect the splitter output, wireless receiver, network node, or universe assignment. Keep one tested short DMX cable and one terminator in the kit for diagnosis. They earn their place fast.

DMX programming gets easier when the paperwork travels with the rig. A clear fixture list, labeled cables, and saved console show file are not bureaucracy. They are what let a crew recreate a look after a company move, a rental swap, or an unexpected power cycle. Walter Lighting & Grip supports the control gear, adapters, cable, fixtures, and set-ready accessories that make that system practical.

The goal is not to make every fixture do every trick in its menu. Build a clean signal path, program only the controls the shot needs, and leave the next person enough information to get the look back without a scavenger hunt.
