DMX Lighting Control System Basics

A bad lighting cue can make a clean setup look amateur fast. If you have ever watched a fixture ignore dimmer changes, jump to full output, or refuse to match the rest of the rig, you already know why a dmx lighting control system matters on set. It is the difference between controlled lighting and a polite argument with your fixtures while the clock keeps running.

What a DMX lighting control system actually does

At its core, DMX is a communication standard that lets one controller tell multiple lighting devices what to do. That can mean intensity, color, CCT, hue, saturation, pixel effects, pan, tilt, shutter, or whatever parameters a fixture supports. The controller sends values across a signal path, and each fixture listens for the channels assigned to it.

For production crews, that matters because modern lighting setups rarely stop at on and off. Aputure, Astera, Nanlux, Kino Flo, and other pro fixtures are packed with features, but those features only help if you can access them quickly and predictably. A proper control system turns a mixed rig into something organized instead of something you explain away with, "give me a second, this one is being weird."

The basic parts of a DMX lighting control system

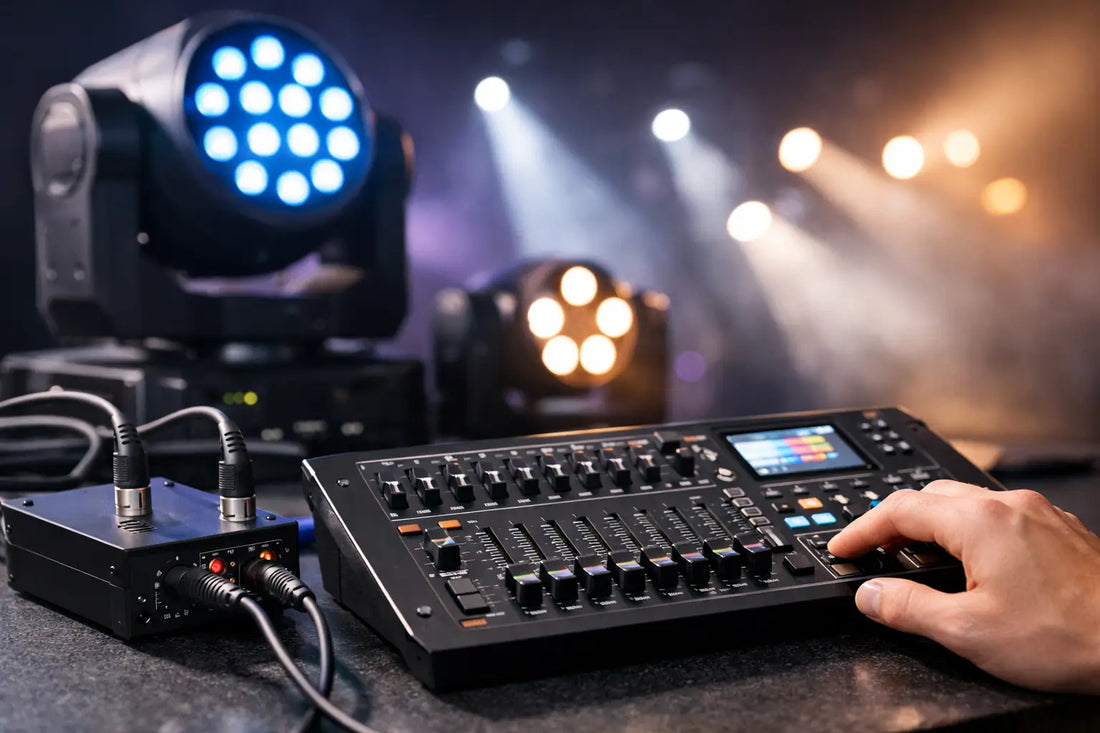

Most setups come down to four parts: a controller, the distribution path, the fixtures, and the addressing plan. The controller can be a hardware board, a small console, or software running through an interface. The distribution path might be hardwired DMX cable, wireless DMX, or a combination of both. Fixtures receive the data and respond based on their DMX profile. Addressing is the part that keeps them from all behaving like they share one brain.

That last part trips people up more often than the gear itself. If two fixtures are set to the same address and mode, they will respond together. Sometimes that is useful. Sometimes it is how you accidentally turn your background practicals magenta while trying to adjust a key light.

Universe, channel, and address - the terms that matter

A DMX universe gives you up to 512 channels. A fixture uses a certain number of those channels depending on its mode. A simple dimmer pack might use one channel. A full-featured RGBACL fixture with effects and fan control might use a lot more.

Your start address tells the fixture where its channel block begins. If a light uses 8 channels and starts at address 101, it occupies 101 through 108. The next fixture cannot start inside that range unless you want it mirrored. Not complicated, but it does require someone on set to pay attention before cable starts flying.

Why film and TV crews care about DMX

In live events, DMX is obvious. In film and photo work, people sometimes treat it as optional until the setup gets bigger than expected. Then suddenly you are trying to match practicals, run a gag, shift color during a take, or hide fixtures in places no one wants to climb back into.

That is where DMX earns its keep. It lets the board op, gaffer, or lighting tech make changes without physically touching every unit. It also helps with repeatability. If a director wants the exact same cue from take three, you can recall it instead of guessing and hoping your meter agrees.

For studio environments, DMX also cleans up the handoff between departments. Lighting setups become easier to document, easier to recreate, and easier to scale. For rental builds and prep days, that is money saved in real time, not just theory.

Wired vs wireless in a DMX lighting control system

Wired DMX is still the reliability standard. If you are in a controlled environment, running cable is usually the safest choice. Proper DMX cable, terminated correctly, gives you fewer surprises and cleaner troubleshooting. When something fails, you can usually find it.

Wireless DMX is useful when cable runs are impractical, talent movement is a factor, or the fixture position changes constantly. Battery lights, car rigs, practical installs, and fast-moving location work all benefit. But wireless adds another layer to manage. Signal range, interference, pairing, and battery discipline all become part of the job.

The best answer is often mixed. Hardwire what stays put and use wireless where mobility actually justifies it. That approach keeps the system flexible without turning the whole day into RF detective work.

When wireless makes sense

Wireless earns its place with Astera tubes in tight practical locations, hidden fixtures in cars, fast commercial setups, and photo shoots where pace matters more than perfect infrastructure. It is also handy when you need quick color changes across multiple battery fixtures and do not want cable taped through every path to video village.

Still, if the shot is mission critical and the fixture is easy to cable, many crews will choose cable every time. Convenient is great. Predictable is better.

Choosing the right controller

The right controller depends on who is operating it and how complex the rig really is. For a small studio or owner-operator package, a simple app-based interface may be enough. If you are controlling a few LED panels, tubes, and practical dimmers, you may not need a full-size console taking up space beside camera carts and coffee cups.

For larger stages, cue-heavy work, or rigs that mix many fixture types, dedicated control hardware starts to make more sense. You get better access to programming, more stable physical control, and less dependence on someone unlocking a tablet with dirty gloves.

There is no prize for overbuilding the system. If all you need is reliable control of intensity and color for a handful of fixtures, keep it lean. If you are running effects, multiple universes, pixel mapping, or complex cue stacks, buy or rent accordingly.

Fixture profiles and mode selection

One reason a dmx lighting control system feels harder than it should is that fixtures rarely ship in one universal personality. Most offer several DMX modes. A basic mode may give you intensity and a few color controls. An extended mode may add effects, fan settings, gels, source emulation, dimmer curves, and more.

That flexibility is useful, but it has consequences. More channels mean more control, but also more address space and more room for mismatches. If your controller expects extended mode and the fixture is set to basic, things get strange fast. Not haunted strange, just production-delay strange.

This is where prep matters. Confirm the exact mode, patch it properly, label it clearly, and keep that information with the package. If your team rents often, standardizing mode choices across common fixture types can save a lot of avoidable nonsense.

Common problems and how crews usually solve them

Most DMX failures are not dramatic. They are small setup errors that stack up. Wrong address, wrong mode, bad cable, missing terminator, poor wireless link, or a fixture that got reset during transport. The fix is usually boring, which is good news.

Start simple. Check power, address, mode, cable path, and controller patch. Confirm the fixture is actually receiving DMX and not set to local control. Swap one variable at a time. If the issue disappears when you replace a cable, congratulations, you found the villain.

Signal issues become more common when people use audio cable instead of proper DMX cable, build very long runs without planning, or mix adapters carelessly. You can get away with a lot until the day you cannot. That day usually arrives when everyone is waiting on first team.

What to buy, what to rent, and what to standardize

For many crews, the smart move is to own the control pieces used constantly and rent the specialized parts when the job calls for them. That often means buying a dependable controller or interface, good cabling, splitters, terminators, and a wireless kit if your workflow truly needs it. Larger consoles, specialty nodes, or expanded fixture packages can stay in the rental lane until usage justifies the spend.

Standardization helps more than people think. Using a consistent set of cables, adapters, fixture modes, and controller workflows reduces prep time and cuts down on troubleshooting. It also makes cross-renting and crew handoff cleaner. Walter Lighting & Grip serves a lot of buyers who are not looking for novelty - they want gear that works with the rest of the package and shows up ready to earn its keep.

Building a system that survives real production days

The best DMX setup is not the fanciest one. It is the one that matches the scale of the job, uses compatible gear, and can be understood quickly by the people touching it. A beautifully complex control network is not helpful if nobody on the crew can patch it under pressure.

Start with the actual workflow. How many fixtures are you controlling, what parameters matter, who is operating, and how often do cues change? Once those answers are clear, the right system usually becomes obvious. Maybe that means a small wired setup for a studio grid. Maybe it means a hybrid wireless package for location commercials. Maybe it means renting a larger control solution for a cue-heavy stage day.

Whatever the path, treat control gear the same way you treat the fixtures themselves - as production equipment, not an afterthought. Because when the lights behave exactly as planned, nobody notices the DMX. Which is usually the highest compliment it can get.
