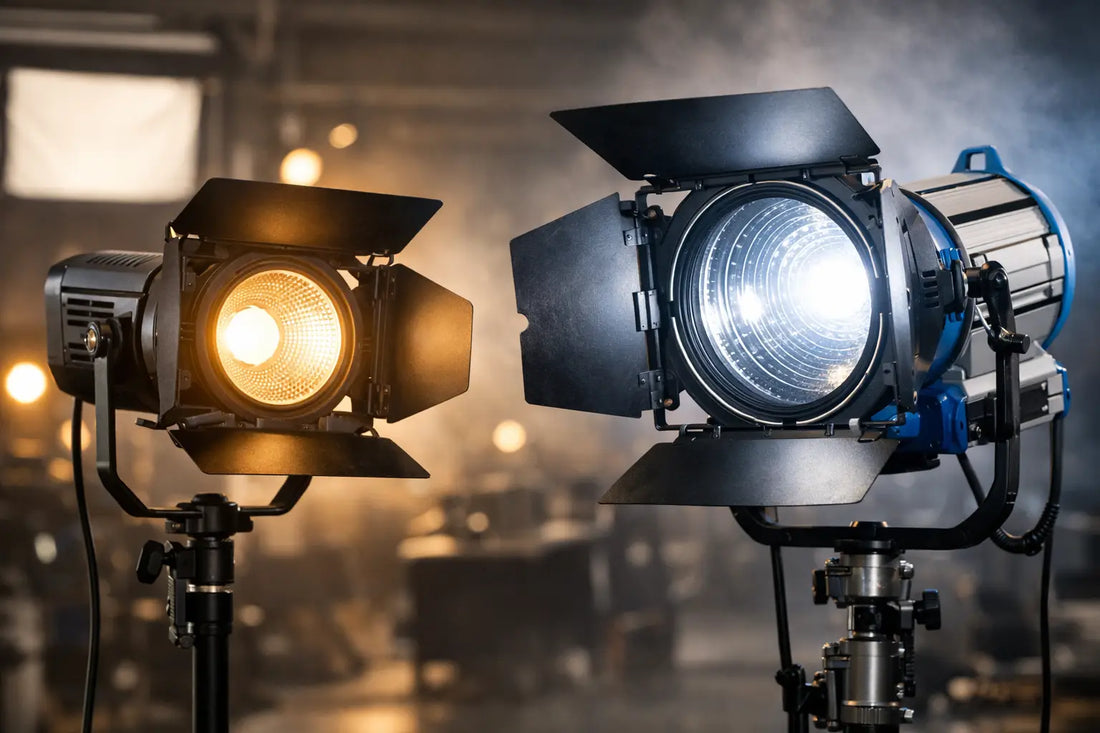

COB Light vs HMI: Which Fixture Belongs on Set?

A COB light vs HMI decision usually comes down to one question: do you need a controllable daylight source that runs almost anywhere, or do you need daylight that can still matter when the sun is in the shot? Both have earned their place on professional sets. They simply solve different problems, and treating an LED COB fixture as a one-for-one HMI replacement can create a long afternoon for the electric department.

COB LEDs now cover an enormous share of interview, studio, commercial, and small-to-mid-size narrative work. HMIs remain serious tools for large daylight work, hard sun effects, and exterior production where output has to travel. The right call depends on the shot, the modifier, the available power, and how much rigging and crew time the day can support.

What a COB Light and an HMI Actually Are

COB stands for chip on board. In production language, it commonly describes an LED fixture built around a dense, single-source-style emitter, such as a daylight or bi-color point-source light. That concentrated source is why COB fixtures work well with reflectors, Fresnel attachments, projection mounts, lanterns, softboxes, and other shaping tools. A 600W-class LED with a narrow reflector can be a very different beast from the same head through a large softbox.

An HMI is a metal-halide arc lamp system, typically consisting of a lamp head and an electronic or magnetic ballast. It produces a daylight-balanced, high-intensity source that has been a standard for daylight cinema lighting for decades. Common sizes range from compact 200W or 400W units to 18K heads meant to make a statement - and consume a meaningful amount of power while doing it.

The labels alone do not tell you the whole story. A COB fixture can be 60W or 1,200W. An HMI can be an open-face PAR, a Fresnel, or a large directional unit. Compare the actual fixture, reflector or lens, beam angle, throw distance, and power draw before declaring a winner.

COB Light vs HMI for Output and Daylight Punch

This is where HMIs still make their case. A large HMI produces enormous hard daylight output and can push that light through windows, over distance, or into large frames with authority. When you are trying to create a sun source through a 12x or 20x, fill a broad exterior area, or compete with a bright afternoon, an HMI remains difficult to replace with one compact LED head.

High-output COB LEDs have narrowed the gap, especially in controlled environments. A modern 600W or 1,200W LED can deliver impressive levels with its native reflector or a matching Fresnel. For a window key on an interview set, a punchy edge light, a practical daylight bounce, or a controlled stage setup, the speed and output can be exactly what the job needs.

But photometrics are not a cage match based on wattage. A 1,200W LED does not automatically perform like a 1.2K HMI, and a fixture’s lux reading is only useful when tested at a stated distance with a stated reflector. A broad beam can look weaker on paper than a narrow beam while being more useful for the actual frame. Ask what needs lighting: the subject, the room, the backing, or a 20-foot run of windows.

When HMI Output Is Worth the Trouble

Choose an HMI when raw directional daylight is the requirement, not just a preference. Large exteriors, day-for-night support, long throws, hard sun simulation, and major window pushes are classic HMI territory. The fixture may be heavier, louder at the ballast, and more demanding to power, but it can prevent the workaround from becoming more expensive than the light.

A COB LED can still contribute on those days. It may handle close fill, a controllable eyelight, an interior accent, or a smaller foreground area while the HMI does the heavy lifting outside.

Color Quality Is More Than a CRI Number

Most current professional COB LEDs offer very good color rendering, often with strong CRI and TLCI scores. They are exceptionally capable for cameras, especially when using established fixture lines and matching the source to the intended camera profile. Many also provide CCT adjustment, green-magenta correction, and built-in effects that are genuinely useful for fast-moving production work.

An HMI has a daylight character many crews know well, but lamp age, hours, ballast behavior, and the specific globe can affect color. A new lamp and a well-maintained system can look excellent. An aging lamp that has shifted green or has been through too many hot days can turn a simple match into a gel-and-meter exercise.

Neither category gets a free pass. If color matching matters, meter the source, check it on the camera being used, and account for the modifier. Diffusion, bounce fabric, lenses, and gels all affect the result. For mixed-source locations, the LED’s ability to dial in a correction can be a major time saver. For a large daylight exterior, the HMI’s output may matter more than its lack of menu-based adjustment.

Power, Heat, and the Realities of the Location

COB LEDs are usually much easier to deploy. Many fixtures run from standard household circuits, and smaller units can operate from battery power. They draw less power for the usable output they provide, create less heat at the head, and avoid the separate lamp-and-ballast workflow of an HMI. For a corporate interview in an occupied office, that means fewer questions about tie-ins, HVAC, and whether someone can keep the breaker panel accessible.

HMIs need more planning. Larger units may require a generator, distro, or properly sized high-amperage service. The heads run hot, the lamps are fragile, and ballasts need a sensible placement plan. They also need warm-up time and may not restrike immediately after being switched off. If the director wants the sun source killed for one setup and back on 30 seconds later, that operating behavior matters.

There is no prize for bringing an HMI to a job where a COB LED would have done the work from a 20A wall circuit. Conversely, there is no prize for stacking multiple LEDs, extra stands, and a mountain of rigging to approximate the output a correctly specified HMI would have supplied cleanly.

Control, Modifiers, and Crew Speed

COB LEDs are built for flexible control. Many accept Bowens-style modifiers, proprietary reflectors, Fresnels, projection attachments, and lanterns. Dimming is generally straightforward, often from the fixture, ballast, wireless remote, or DMX. On a small crew, that versatility can mean one fixture moves from a hard backlight to a soft key without changing the entire lighting plan.

HMIs have excellent control too, particularly in PAR and Fresnel configurations, but the ecosystem is more traditional. You may be working with lenses, barndoors, scrims, flags, nets, frames, and bounce. That is not a drawback when you have a full grip package and a crew that knows the plan. It is simply a different pace than opening a softbox, setting a CCT value, and making a quick adjustment from the board.

Noise is another practical consideration. LED fixtures can have fan noise, particularly at high output or in warm rooms, although many offer quiet modes with reduced output. HMI ballasts can also be audible. For dialogue work, place the ballast thoughtfully, listen before rolling, and do not assume any high-output fixture is silent.

Cost: Buy the COB, Rent the HMI When Needed

For owner-operators, small studios, and teams shooting frequent controlled work, buying a COB LED usually makes sense. It is useful on a wide range of jobs, stores easily, travels well, and earns its keep across interviews, product work, portraits, tabletop setups, and practical location lighting.

An HMI is often a better rental decision unless daylight punch is part of your regular work. The cost is not only the head. Consider the ballast, stand, cable, lenses or accessories, spare lamps, power solution, transport, and the crew needed to use it safely. Rental lets a production scale to the job without turning a specialized daylight package into a warehouse ornament.

At Walter Lighting & Grip, that buy-versus-rent split is worth considering early in prep. The right fixture is only part of the package. A large daylight source also needs the correct stand, sandbags, distribution, rigging, and light-control tools to stay useful and safe.

A Practical Fixture Choice by Scenario

For interviews, small studios, tabletop work, and mixed-light interiors, start with a COB LED. It is fast, dimmable, easy to shape, and usually easier on location power. For a soft key, choose the head based on the size of the modifier and the working distance, not just the fixture’s advertised wattage.

For window light that needs to feel like direct sun, start by estimating the window size, camera exposure, and daylight outside. A high-output COB with a Fresnel may be enough for a modest window or overcast day. If the source must travel farther, fill a larger frame, or compete with direct daylight, an HMI becomes the cleaner choice.

For large exterior commercials, narrative day work, or any setup where the light must read as sun from a distance, plan around HMI output first. Then use LEDs for the work they do best: close-range control, fast adjustments, accents, and smaller areas where a giant daylight unit would be pure overkill.

The useful question is not which technology wins. It is which source gets the frame where it needs to go without creating a power, heat, rigging, or budget problem somewhere else on the call sheet.
