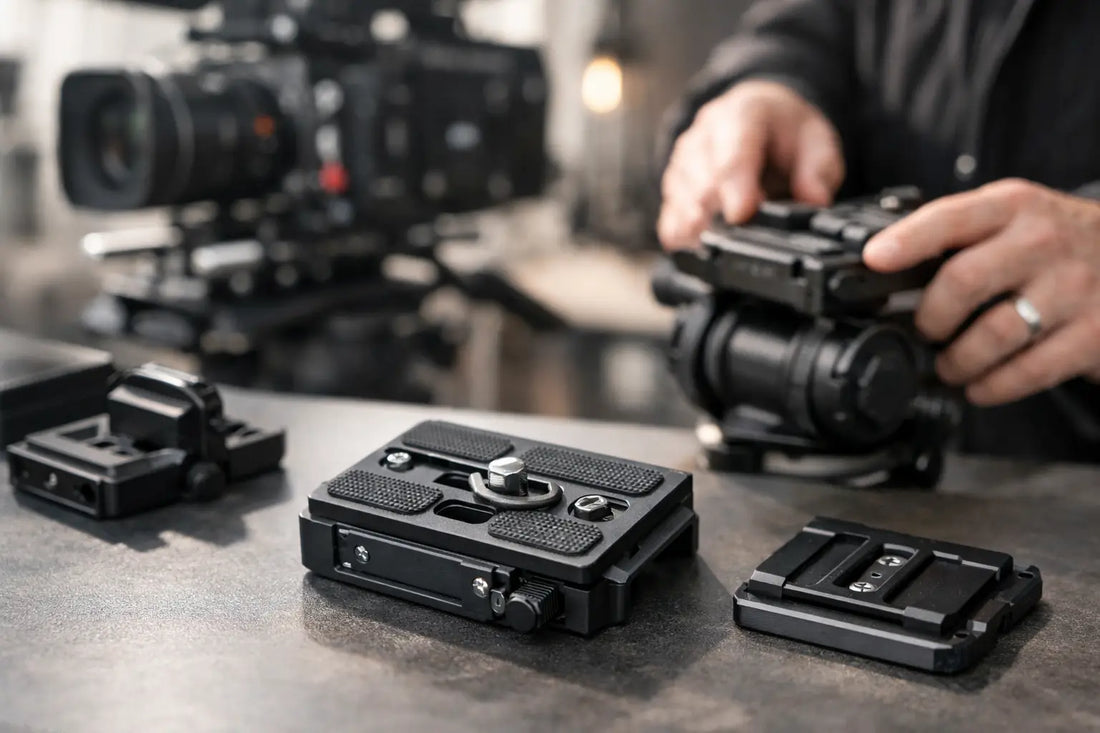

Camera Plate Compatibility Guide for Working Crews
Share
A camera plate that almost fits is one of those tiny problems that can burn a very expensive hour. The camera plate compatibility guide below is built for the real question crews face at prep: will this plate, clamp, head, and camera build lock together securely, balance correctly, and come off when it is supposed to?
The short answer is that a plate is not universal just because it has a 1/4-20 screw in it. Camera support systems are ecosystems. The plate profile, clamp dimensions, safety-stop design, mounting screws, locating pins, and intended payload all matter. A stills body on a small ball head has different needs than a fully built cinema camera on a fluid head, and both are very different from a camera moving between a tripod, slider, gimbal, and shoulder rig.
Start With the Clamp, Not the Camera
The most reliable way to identify a compatible plate is to begin with the receiving clamp or tripod head. That is the part that dictates the plate shape. Look for a manufacturer name and model number on the head, quick-release adapter, gimbal, baseplate, or tripod bowl assembly. If the existing plate is available, compare its profile, length, underside geometry, stop screws, and screw placement rather than relying on a product photo.
A plate can share the same mounting screw as another plate and still be completely wrong for the clamp. The 1/4-20 screw is common on camera bodies, while 3/8-16 is common on larger cameras, cages, and video plates. Those threads attach the plate to the camera. They do not identify the quick-release standard.
Also check whether the clamp has a spring-loaded safety catch, a lever lock, or a screw-knob lock. A plate designed for a drop-in lever clamp may not enter a slide-in clamp properly. If it does enter, it may not engage the safety mechanism. That is not a clever workaround. It is a camera waiting to meet the floor.
Common Camera Plate Compatibility Systems
Arca-Swiss-style dovetails
Arca-Swiss-style plates are everywhere in photography, mirrorless video, cages, L-brackets, and compact support. They use an angled dovetail profile, usually described as approximately 38 mm wide. “Arca-type” is a useful category, but it is not a guarantee of exact interchangeability.
Different manufacturers vary the jaw depth, dovetail angle, stop-screw placement, plate length, and clamp tolerance. A basic plate may clamp in an Arca-style head but lack the anti-twist flange needed for a specific camera body. A long Arca plate may hit a clamp’s safety pin before it can center where you need it. For lightweight builds, test the lock with the camera pointed down and confirm the plate cannot slide past the safety stop.
Arca systems are excellent when fast movement between a photo tripod, cage, and compact slider is the priority. They are less ideal when a heavy cinema build needs long fore-aft travel for balance or a standardized handoff between multiple video departments.
Manfrotto photo and video plates
Manfrotto plate families are common on working sets, but they are not one family in the compatibility sense. A compact RC2-style plate is not the same as a 501PL-style video plate, and neither should be assumed compatible with a 504-series plate or a proprietary quick-release receiver.
The 501PL-style format is widely used for video heads, small fluid heads, and quick-release adapters. Its long rectangular shape gives more balancing travel than a compact stills plate, making it practical for camcorders, ENG-style bodies, and moderate mirrorless rigs. Even here, verify the exact receiver. Plate length, latch geometry, pin placement, and included screws can differ across generations and third-party designs.
A common prep-room mistake is calling every long black plate a “Manfrotto plate.” Treat the part number as the answer, not the silhouette. If your head calls for a specific plate, use that plate or a replacement explicitly made for that receiver.
VCT-14 and broadcast wedge plates
VCT-14 systems use a wedge-shaped plate and locking mechanism designed for broadcast and larger camera configurations. They are made for fast docking, secure retention, and the kind of payload where a thin photo quick-release plate would be a bad joke.
A VCT-14 plate is usually part of a larger support chain: camera body or riser, bridgeplate, rods, shoulder package, and tripod adapter. Confirm the wedge direction, release lever access, camera-side mounting pattern, and whether the package needs an intermediate cheese plate or riser. A VCT plate may fit the receiver perfectly while the camera still sits too low for the viewfinder, rods, or matte box to work as intended.
ARRI-style dovetails and cinema baseplates
Cinema dovetails provide a long sliding interface for balancing heavier builds. They are often used with bridgeplates, 15 mm LWS or 19 mm studio rods, and larger fluid heads. “ARRI-style” is sometimes used loosely in product descriptions, so measure and verify the exact standard before mixing brands.
The key advantage is balance range. Add a zoom, wireless motors, a top-mounted monitor, a battery plate, and a matte box, and the camera’s center of gravity moves quickly. A short quick-release plate can leave the head at the edge of its travel. A proper dovetail lets the operator balance the complete shooting configuration rather than the bare camera body.
Gimbal and proprietary quick-release plates
Many gimbals use plates that resemble Arca dovetails, Manfrotto video plates, or both. That resemblance is where trouble starts. A gimbal plate may include a secondary safety lock, a custom height profile, or a mounting direction that is required for proper balance and clearance.
Use the plate specified for the gimbal whenever possible, especially when the system has a two-stage quick-release design. If a third-party plate is being considered, check not only whether it clamps, but whether it allows full tilt range, clears the roll arm, and preserves the fore-aft adjustment needed to balance the rig. Compatibility that works on a bench can fail once the lens, cage, motor, and monitor are installed.
What to Check Before You Buy or Rent
For a quick compatibility check, gather these details before ordering a replacement plate or adapter:
- The make and exact model of the tripod head, clamp, gimbal, or baseplate receiver.
- The camera body, cage, or camera plate mounting surface, including 1/4-20 and 3/8-16 threaded holes.
- The current build weight and what will be added: lens, battery, rods, matte box, monitor, motors, and wireless gear.
- Any locating pins, anti-twist tabs, safety-stop screws, or recessed mounting areas that must line up.
- The handoff path between supports, such as tripod to slider, gimbal to tripod, or shoulder rig to studio pedestal.
Plate Fit Is Not the Same as a Safe Camera Build
A plate and clamp may physically connect while still creating a poor operating setup. The most common issue is balance. A head rated for the payload may hold the camera, but it will not perform well if the camera cannot slide far enough to place its center of gravity over the tilt axis. You will feel it as a fighting tilt lock, a camera that falls forward or backward when the lock is released, or inconsistent drag during a move.
Clearance matters too. A plate can block a battery door, interfere with a cage’s cable clamp, prevent a monitor cable from routing cleanly, or leave no room for the camera’s bottom vents. On cinema builds, check that rod height and optical center stay where the matte box, follow focus, and lens support expect them to be.
Do not stack adapters just to make a mismatched plate work unless the system is designed for it. Every adapter adds height, flex, weight, and another locking point to inspect. Sometimes an adapter is the right production solution, especially for moving a camera between standardized departments. Other times it is cheaper, cleaner, and safer to use the correct plate and receiver from the start.
Build Around Your Most Frequent Handoff
The best plate system depends on where the camera goes most often. A photographer who moves between a handheld cage and an Arca-compatible tripod may value compactness and speed. A documentary crew may prefer a video plate that supports quick balance changes. A cinema package that spends its day on a fluid head, dolly, and shoulder rig benefits from a standardized dovetail and bridgeplate workflow.
For mixed-camera productions, standardizing plates across the package reduces prep friction. Label spare plates by system, keep the correct screws and hex key with each plate, and do not toss every mystery plate into one “camera hardware” case. That case becomes an archaeological dig right when first team is ready.
At Walter Lighting & Grip, the practical move is to match the support system to the build, then keep a correctly identified spare plate with every primary camera package. A spare is inexpensive insurance. More importantly, it lets the crew solve a plate problem at cart speed instead of turning a simple camera move into a support-department meeting.
