Why Broadcast Studio Lighting Demands a Different Approach
A professional broadcast studio lighting setup is a system of fixtures, modifiers, and control protocols engineered to hold consistent color, exposure, and contrast across multiple cameras, live switching, and long shooting days. Unlike film lighting, nothing can be fixed in post: the feed is the deliverable.
That constraint reshapes every decision. On a film set you can relight between takes and grade later; in a broadcast studio, three cameras roll simultaneously, the switcher cuts without warning, and the lighting must read identically on all of them for hours. Walter Lighting & Grip supplies lighting and grip packages to production companies and broadcast facilities, and common failures recur: mixed color temperatures, hotspots that flare on camera, and control systems never designed for the channel count the show needs.
Core Components: Fixtures, Modifiers, and Control Systems
Every broadcast lighting package resolves into three layers: fixtures that generate light, modifiers that shape it, and the control system that governs it. Get the fixtures right and the rest is refinement; get them wrong and no amount of diffusion saves the shot.
Types of Lighting Fixtures for Studio Work
Fresnel fixtures are the workhorse of studio lighting. A fresnel lens focuses the beam into a tight spot or floods it wide, with continuous adjustment instead of stepped settings. The Astera LeoFresnel covers a 15° to 60° beam angle with no color fringing, delivering output comparable to a 1000W tungsten fresnel while drawing only 250W (astera-led.com). The PlutoFresnel matches a 300W tungsten unit on 80W.
LED panel lights provide broad, even illumination for large areas, suiting soft key light, fill, and cyc washes where a hard beam would be wrong.

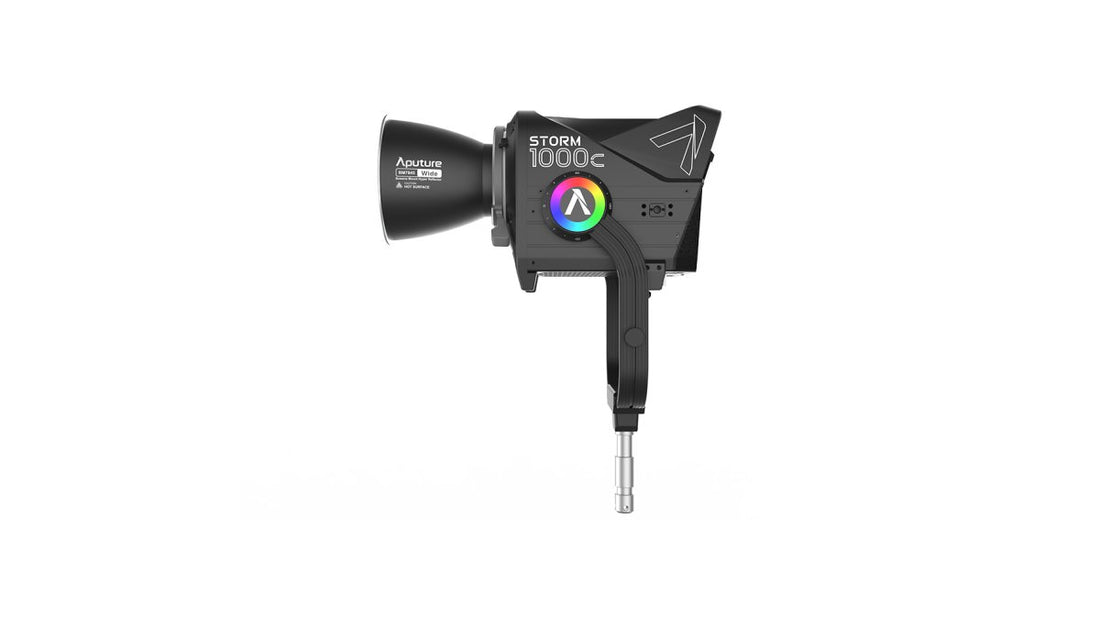

High-output point-source fixtures handle demanding work: key light through a large modifier, long throws, or cyclorama washes. The Aputure STORM 1000c is a 1,000W fixture built around the BLAIR-CG light engine, a seven-color LED array (blue, lime, amber, indigo, red, cyan, green) covering more than 90% of the Rec2020 color gamut, letting it hit specific color temperatures and gel equivalents without the gaps that make skin look waxy (aputure.com).
Light Modifiers and Diffusion Tools
Modifiers decide the quality of light, not the quantity. A softbox turns a point source into a broad, wraparound source; a grid controls spill; diffusion fabric trades output for softness.
The Aputure Light Dome SE is a 16-sided modifier with a 35.5-inch diameter, producing the soft wraparound quality multi-sided softboxes are known for (aputure.com). It ships with 1.5-stop and 2.5-stop front diffusion plus a removable 1.5-stop internal baffle, giving real contrast control from a single modifier instead of a separate softbox per look.
Three-Point Lighting Setup for Interviews
The three-point lighting setup for interviews is a key light at roughly 45° off the subject's axis and 30° above eye level, a fill light on the opposite side at lower intensity, and a backlight behind and above the subject for separation. It is the baseline every broadcast interview is built from.
Key, Fill, and Backlight Positioning
The key light defines the shape of the face and carries most of the exposure. Place it 45° to one side of the camera axis and 30° above the eyeline, then set exposure against it.
The fill light softens the shadow the key creates. A 2:1 ratio (fill at half the key's intensity) reads natural; 4:1 is more dramatic. Broadcast interviews usually sit between 2:1 and 3:1 because the image must survive compression and a small screen.
The backlight, sometimes split into a hair light and a shoulder light, sits behind and above the subject, creating a rim of separation that stops them merging into the background. Without it, even a well-exposed interview looks flat on air.
| Light | Position | Typical Role | Common Ratio |
|---|---|---|---|
| Key | 45° off-axis, 30° above eyeline | Primary exposure and shaping | Reference (1:1) |
| Fill | Opposite side, near camera height | Shadow control | Half of key (2:1) |
| Backlight | Behind and above subject | Subject/background separation | Equal to or above key |
Color Rendering Index (CRI) for Broadcast and Color Temperature
The color rendering index (CRI) for broadcast measures how faithfully a light source reproduces colors versus a reference source, scored out of 100. Color temperature, in kelvin, describes whether that light reads warm or cool. Both must be consistent across every fixture on set.
CRI alone is not enough for broadcast. A fixture can score well on CRI and still fail on saturated colors, which is why TLCI (Television Lighting Consistency Index) exists: it models how a camera sensor, not the human eye, responds to a light source. For broadcast work, TLCI is the more relevant number.
Color temperature consistency matters because the switcher cuts between cameras with different framing and sometimes different fixtures in the shot. If one fixture runs at 5600K and another at 5200K, the cut is visible immediately. Lock every fixture to a single color temperature, then adjust per-scene only for a deliberate shift.
Spectral consistency is the deeper issue. Two fixtures can both read 5600K and still render skin differently if their spectral output differs. A seven-color engine like BLAIR-CG produces a broader, more continuous spectrum than a bi-color array, holding skin tones more reliably under mixed lighting.
LED Panel Lights for Video Production
LED panel lights for video production are flat, broad-source fixtures used for soft key light, fill, and background washes. Their broadcast value is flicker-free dimming, low heat, and a wide, even field that lets you place them close to talent without cooking them.
Two specs matter more than panel size. First, flicker-free operation: a panel that dims via PWM at a frequency the camera's shutter can catch will band on air, and it is not always visible to the eye on set. Second, dimming curve quality: a panel that jumps from 10% to black with no usable low end is useless for subtle fill on a dark set.
Flicker, Shutter Angle, and Frame Rate
Flicker is a systems problem, not a fixture problem. A panel that looks clean at 1/48 shutter can band at 1/120, and one clean at 24 fps can band at 60 fps. Before a shoot, test every panel at every shutter angle and frame rate the production will use, on the actual camera bodies, at every dimming level from 100% down to the lowest usable output. Banding usually appears in the bottom third of the dimming range first, exactly where a subtle fill lives.
Thermal Management for 24/7 Broadcast
Broadcast studios run long. A panel fine for a two-hour shoot can drift in color temperature after six hours of continuous operation as the LED array and driver heat up. Two countermeasures: choose fixtures with active thermal regulation rather than passive heatsinks where the panel runs continuously, and leave headroom in the dimming range so the fixture is not pinned at 100% for hours. A panel run at 80% for a ten-hour day holds color more consistently than the same panel at full.
Heat also affects the room. A grid of panels each dissipating 100-200W adds up fast in a sealed studio. If the HVAC was sized for a tungsten rig it will usually cope; if the studio is small and tightly sealed, plan airflow around the grid and measure ambient temperature at talent height, not at the ceiling. Automated climate control systems often integrate with DMX software for events to adjust cooling cycles dynamically as lighting intensity shifts throughout the broadcast.
Skin Tone Rendering Across Complexions
The broad, even output of a panel is flattering on some complexions and flattening on others. Deeper skin tones benefit from a slightly higher key-to-fill ratio (3:1 rather than 2:1) and more backlight separation, because the same soft, low-contrast wash that reads natural on lighter skin can read muddy on deeper skin under broadcast compression. The fix is not a different fixture but a different ratio: test it on the actual talent and cameras before the show, then lock it into the console as a preset.
Broadcast Studio Lighting Design Best Practices
Broadcast studio lighting design best practices start with the grid, not the lights. The ceiling infrastructure determines what you can hang, where, and how much power and data reach each position.
Studio Grid Planning and Power Distribution
A studio grid is the overhead framework of pipes, rails, or truss that fixtures mount to. Plan it around camera positions and set layouts, not the reverse, and leave enough positions to relight a set without moving the entire rig.
Power distribution follows the grid. Broadcast studios typically run separate circuits per grid zone so a single fixture failure or breaker trip does not black out the whole set. Calculate load per zone against the fixtures you actually run at full output, not the ones you own.
Electrical Load and Circuit Planning
The load calculation is where most studio builds get into trouble. A fixture rated at 1,000W may draw more at startup, and a zone of high-output LED fixtures can pull more current than its breaker was sized for. Two rules of thumb: derate each circuit to 80% of its breaker rating for continuous loads, and keep lighting circuits separate from audio and video so a dimmer or driver fault does not inject noise into the signal chain.
Grounding matters as much as capacity. A studio with multiple power sources, house power, generator, UPS, needs a single bonded ground reference, or cameras will see hum bars and audio will pick up buzz. This is a licensed electrician's job, and it is the most common cause of "mystery" noise in a new studio.
RF and Electromagnetic Interference
Wireless DMX, wireless mics, in-ear monitors, and Wi-Fi all share spectrum, and a broadcast studio packs them into one room. The interference is not hypothetical: a wireless DMX transmitter near an audio receiver can cause dropouts in both, and a poorly shielded LED driver can radiate noise that shows as a faint horizontal band on camera.
A practical scan-and-separate routine: before the shoot, scan for open channels on both the DMX and audio systems, assign non-overlapping bands, and separate transmitters from receivers by at least a meter where possible. Keep antenna cables away from power runs. If a fixture flickers intermittently but tests clean, suspect interference before the fixture.
DMX Control and Automation
DMX protocol is the standard control language for studio lighting, turning a rig from a collection of switches into a system. A DMX-controlled setup lets one operator recall a look across every fixture at once, essential when a show changes sets between segments.
The Astera LeoFresnel and PlutoFresnel both support wired and wireless DMX, removing the need to run control cable to every position, a real advantage on a grid where cable runs are awkward, though it demands attention to interference.
Wireless DMX and audio equipment can interfere with each other because they often share spectrum. On a set with wireless mics and in-ear monitors, scan for open channels before the shoot and keep DMX transmitters away from audio receivers. This is one of the most common causes of mysterious flicker that gets blamed on the fixtures.
Maintenance and Long-Term Reliability
A broadcast studio that runs daily needs a maintenance schedule, not just a build. Three items belong on it: clean diffusion and softbox fronts monthly (dust shifts color and cuts output), check every fixture's fan and heatsink quarterly (a clogged fan is the leading cause of color drift and premature LED failure), and verify color temperature and output with a meter every six months against a reference. Fixtures drift; a meter catches it before the switcher does.
Common Mistakes in Broadcast Studio Lighting
The most expensive broadcast lighting mistakes are systemic, not technical. They come from treating a studio like a film set.
Mixing color temperatures across fixtures is the classic error: it looks fine to the eye on set, then cuts badly on air. Lock the whole rig to one color temperature and verify with a meter, not your eyes.
Ignoring flicker until the edit is the second. Flicker from PWM dimming or a mismatched shutter angle does not always show on a monitor, and becomes obvious once footage is compressed and broadcast. Test every fixture at every dimming level you plan to use, on camera, before the shoot.
Overloading a single circuit because the load calculation used rated wattage rather than actual draw is the third. It works until someone pushes every fixture to full output at once.
Finally, treating the grid as permanent. Studios get relit constantly. If your grid and power distribution were planned for one show, every subsequent show pays the cost.
Conclusion
Broadcast lighting rewards planning over improvisation. The rig must hold color, exposure, and control across multiple cameras and long days, which means starting with the right fixtures, locking color science, and building a grid and control system that can change with the show.
Walter Lighting & Grip supports that work with industry-standard lighting and grip equipment, from high-output LED fixtures and fresnel units to softboxes, modifiers, and the expendables that keep a set running. We offer purchase and rental options, so you can scale a package to the production in front of you.
Get started with Walter Lighting & Grip and build a broadcast studio lighting package that holds up on air, shoot after shoot.
Frequently Asked Questions
What CRI rating do I need for professional broadcast studio lighting?
For broadcast work, aim for a CRI of 95 or higher. Lower CRI values cause skin tones to appear washed out or unnaturally green on camera. Look for fixtures that also publish TLCI ratings above 90, since TLCI measures color accuracy specifically for television cameras. The Aputure STORM 1000c, for example, uses a BLAIR-CG light engine covering over 90% of the Rec2020 color gamut, which keeps colors consistent across multi-camera shoots.
How do you set up three-point lighting for interviews in a studio?
Position the key light 45 degrees to one side of the subject and slightly above eye level. Place the fill light on the opposite side at a lower intensity to soften shadows. Put the backlight behind and above the subject to separate them from the background. Adjust the ratio between key and fill to control contrast. A 2:1 ratio works well for most interviews, while a 4:1 ratio adds more dramatic depth.
What is the difference between hard and soft lighting in a broadcast environment?
Hard lighting comes from a small, focused source and creates sharp, defined shadows. Soft lighting comes from a large or diffused source and produces gradual shadow transitions. Broadcast studios typically favor soft lighting for interviews because it flatters skin and hides imperfections. Fresnel fixtures with diffusion or softboxes like the Aputure Light Dome SE give you control over how soft the light falls on your subject.
How do you balance color temperature across multiple studio lights?
Set every fixture to the same color temperature before the shoot. Most broadcast studios standardize on 5600K for daylight-balanced work or 3200K for tungsten-matched setups. Use a color meter to verify each light matches. LED fixtures with tunable white points make this easier because you can dial in exact kelvin values. Mixing temperatures without correction creates color casts that are difficult to fix in post-production.
How does DMX control improve a broadcast studio lighting setup?
DMX lets you control brightness, color, and beam angle from a single console instead of adjusting each fixture by hand. This matters during live broadcasts where lighting changes need to happen instantly and precisely. Wireless DMX options from brands like Astera remove cable runs across the studio floor. You can also save lighting presets for different segments, which cuts setup time between shows.
What maintenance does professional broadcast studio lighting require?
Clean diffusion panels and lenses monthly to prevent dust from reducing output. Check cooling fans and vents quarterly since dust buildup causes LEDs to overheat and lose brightness over time. Inspect cables and connectors for wear before every production. For rental gear, ask your supplier about their maintenance schedule. Walter Lighting & Grip maintains rental inventory so fixtures arrive performance-ready for your shoot.
